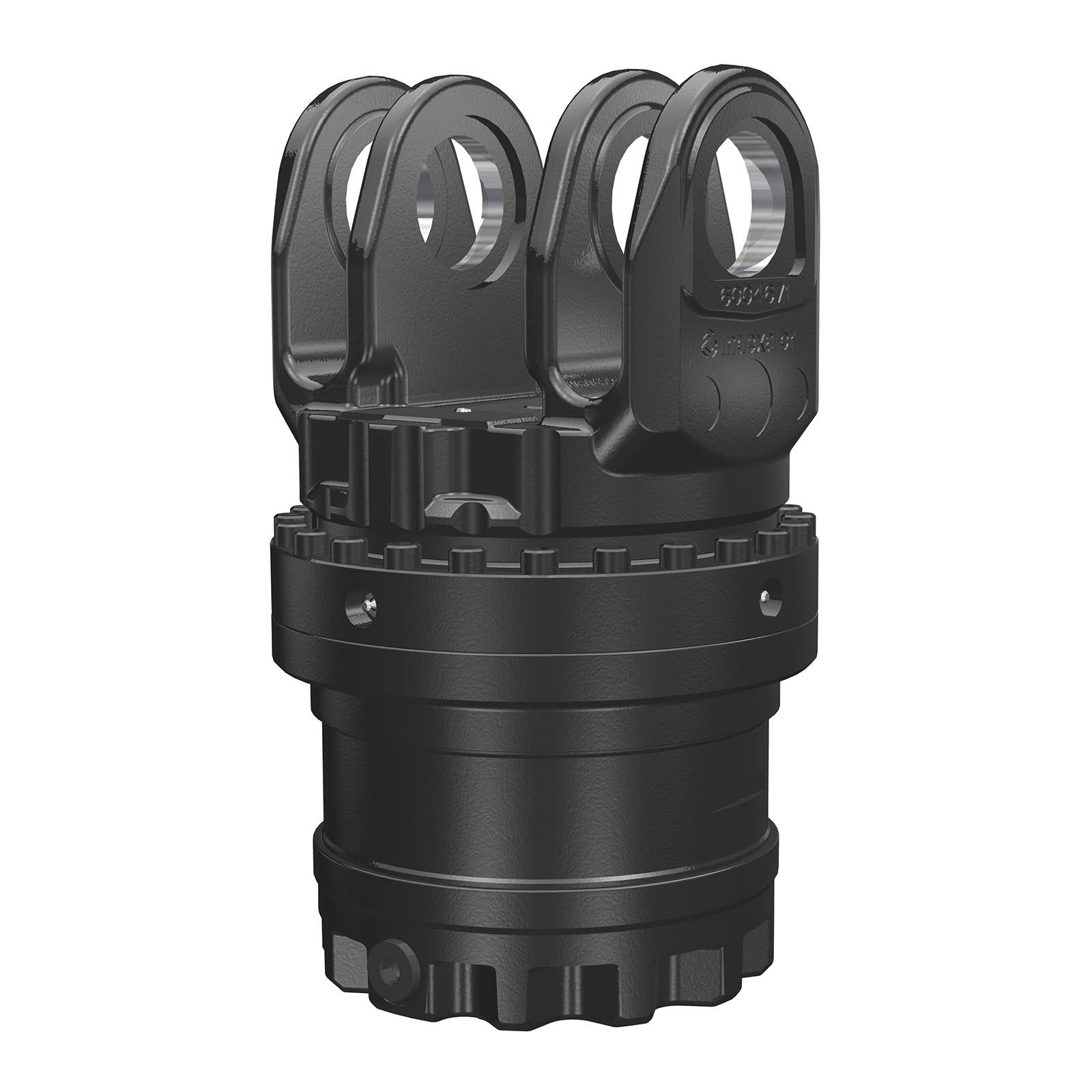

Rotator HX 30 LS
Technical data
| Part No. | 7300000 |
|---|---|
| Type of rotator | Harvester head rotator |
| 71 kg | |
| 360° | |
| ±160 kN | |
| ±50 kN | |
| 3300 Nm | |
| 35 l/min | |
| 25 MPa |
Function
| Load Sense |
Interface
| Upper interface | MPB2 184 mm |
|---|---|
| Lower interface | Ø 173 mm |
A rotator with the shortening LS is not equipped with restrictors (unlike our standard rotators). This means that the oil flow from the base machine has to be adapted.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| HX 30 LS | |
|---|---|
| A | MPB2 |
| B | MPB |
| C | Ø173 mm |
| D | M16 |
| H | 353 mm |
| I | Ø216 mm |
| K | 36 mm |
| L | Ø250 mm |
| W | 12 mm |
| X | 30° |
| Y | 34 mm |
| Connections | ||
|---|---|---|
| Lower connection | G 1/2 | |
