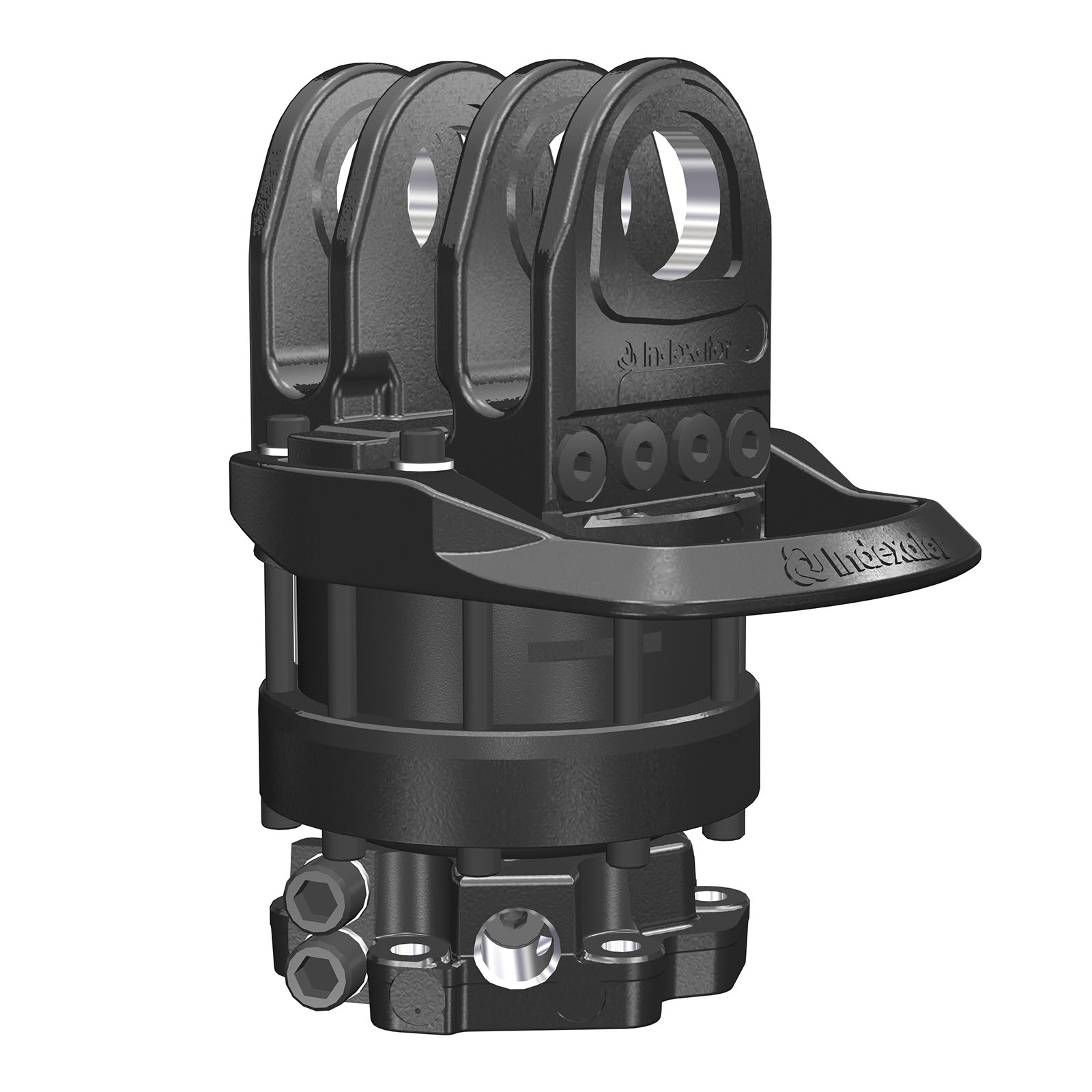

Rotator G 121 LS
Technical data
| Part No. | 7212078 |
|---|---|
| Type of rotator | Grapple rotator |
| 57.1 kg | |
| 360° | |
| 100 kN | |
| 50 kN | |
| 2200 Nm | |
| 25 l/min | |
| 25 MPa | |
| 30 MPa | |
| 30 MPa |
Function
| Load Sense1 |
Interface
| Upper interface | MPB1 144 mm |
|---|---|
| Lower interface | Ø 173 mm |
1 A rotator with the shortening LS is not equipped with restrictors (unlike our standard rotators). This means that the oil flow from the base machine has to be adapted.
Adapter sets are available for alternative connections.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| G 121 LS | |
|---|---|
| A | MPB1 |
| B | MPB |
| C | Ø173 mm |
| D | Ø17 mm |
| F | 30 mm |
| H | 333 mm |
| K | 42 mm |
| L | Ø229 mm |
| M | 202 mm |
| Connections | ||
|---|---|---|
| Upper connection | G 1/2 | |
| Lower connection | G 1/2 | |
