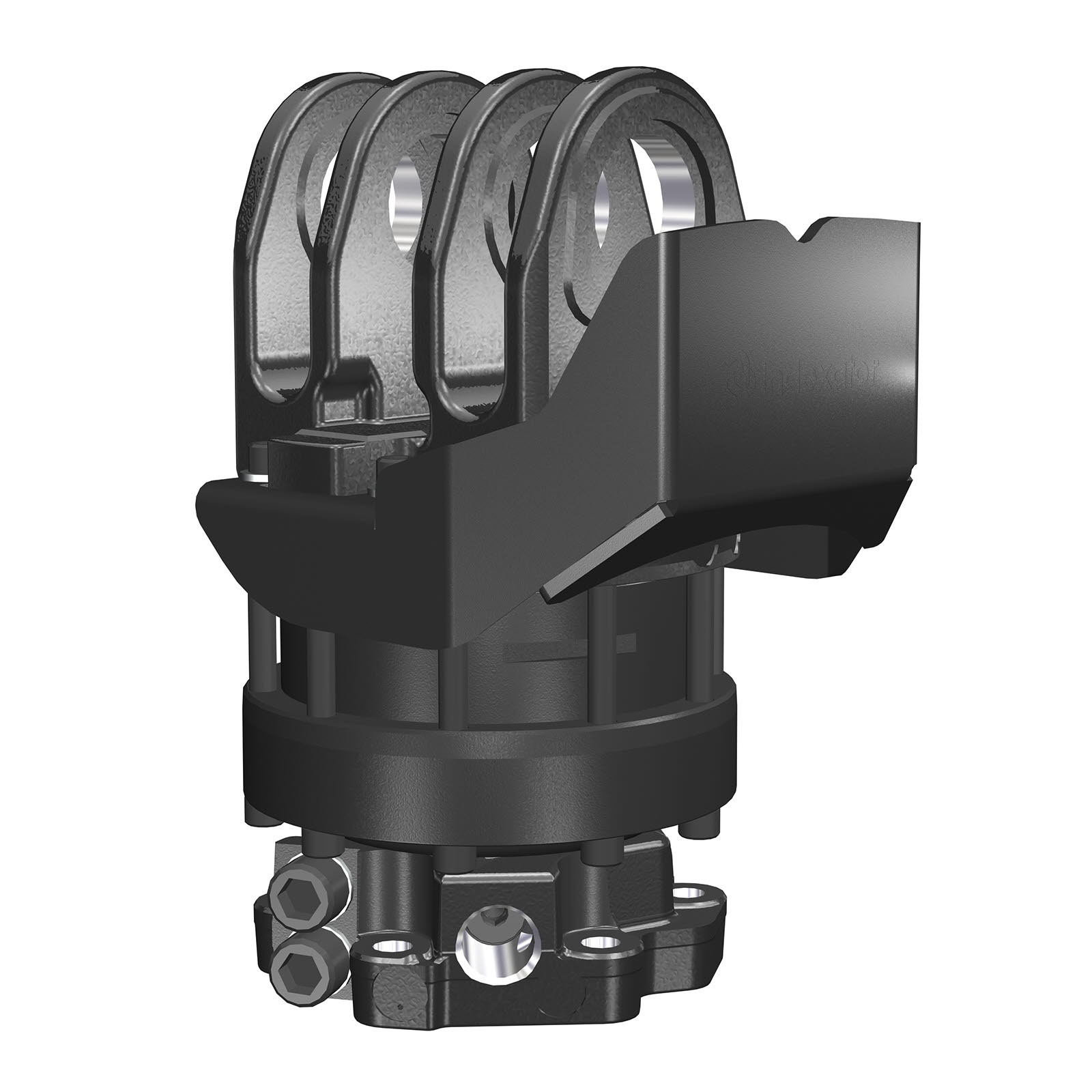

Rotator G 121 Y
Technical data
| Part No. | 7212052 |
|---|---|
| Type of rotator | Grapple rotator |
| 58 kg | |
| 360° | |
| 100 kN | |
| 50 kN | |
| 2200 Nm | |
| 25 l/min | |
| 25 MPa | |
| 30 MPa | |
| 30 MPa |
Function
| Protected Hose Routing |
Interface
| Upper interface | MPB1 144 mm |
|---|---|
| Lower interface | Ø 173 mm |
Adapter sets are available for alternative connections.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| G 121 Y | |
|---|---|
| A | MPB1 |
| B | MPB |
| C | Ø173 mm |
| D | Ø17 mm |
| F | 30 mm |
| H | 333 mm |
| K | 42 mm |
| L | Ø229 mm |
| M | 172 mm |
| N | 6 mm |
| Connections | ||
|---|---|---|
| Upper connection | G 1/2 | |
| Lower connection | G 1/2 | |
