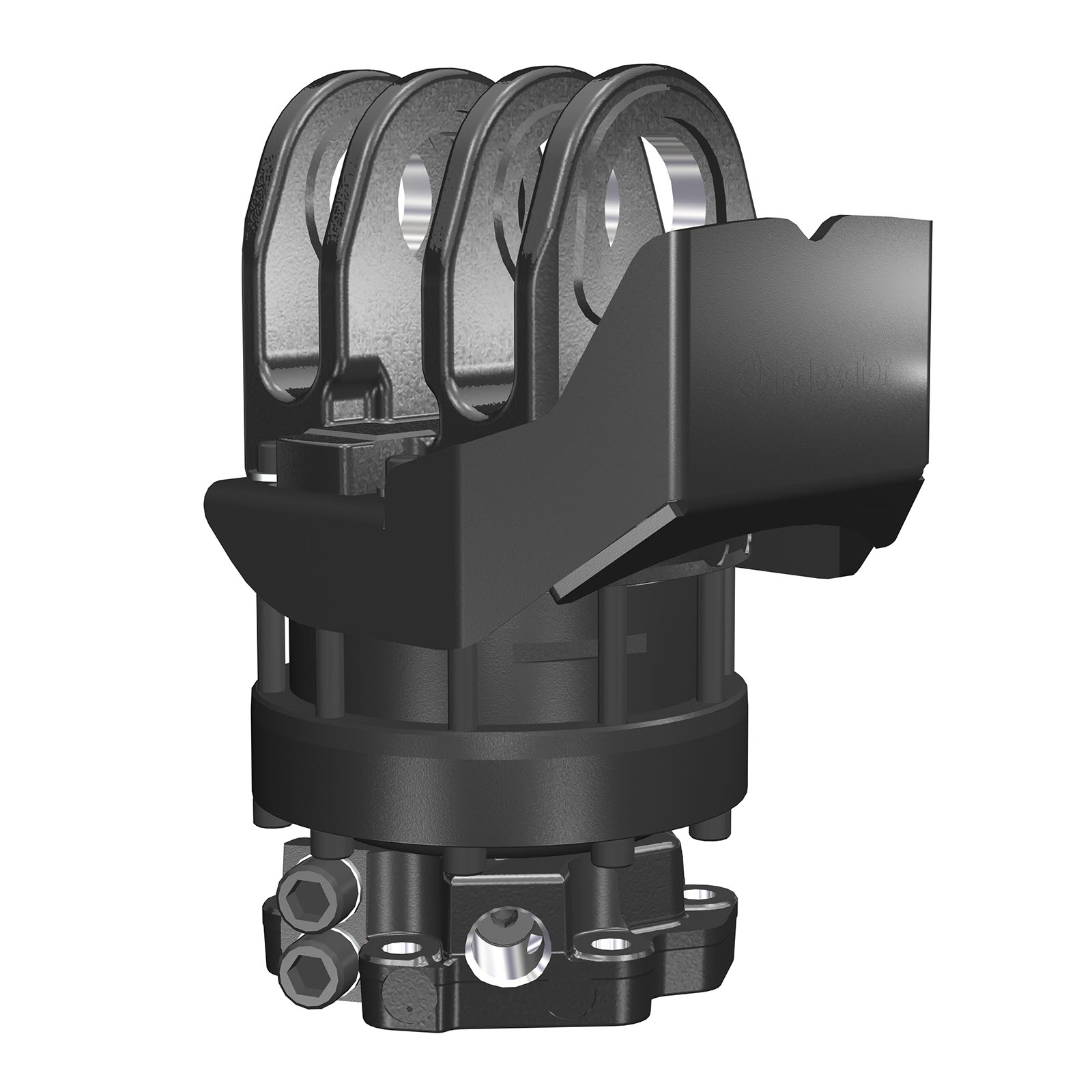

Rotator G 121 Y BC
Technical data
| Part No. | 7212054 |
|---|---|
| Type of rotator | Grapple rotator |
| 57.2 kg | |
| 360° | |
| 100 kN | |
| 50 kN | |
| 2200 Nm | |
| 25 l/min | |
| 25 MPa | |
| 30 MPa | |
| 30 MPa |
Function
| Protected Hose Routing | |
| BC1 |
Interface
| Upper interface | MPB1 144 mm |
|---|---|
| Lower interface | Ø 173 mm |
1 BC means that the product is purpose built for hydraulic control of the MPB1 brake.
Rotator suitable for MPB swing dampers med hydraulic brake control (BC).
Adapter sets are available for alternative connections.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| G 121 Y BC | |
|---|---|
| A | MPB1 |
| B | MPB |
| C | Ø173 mm |
| D | Ø17 mm |
| F | 30 mm |
| H | 333 mm |
| K | 42 mm |
| L | Ø229 mm |
| M | 172 mm |
| N | 6 mm |
| Connections | ||
|---|---|---|
| Upper connection | G 1/2 | |
| Lower connection | G 1/2 | |
