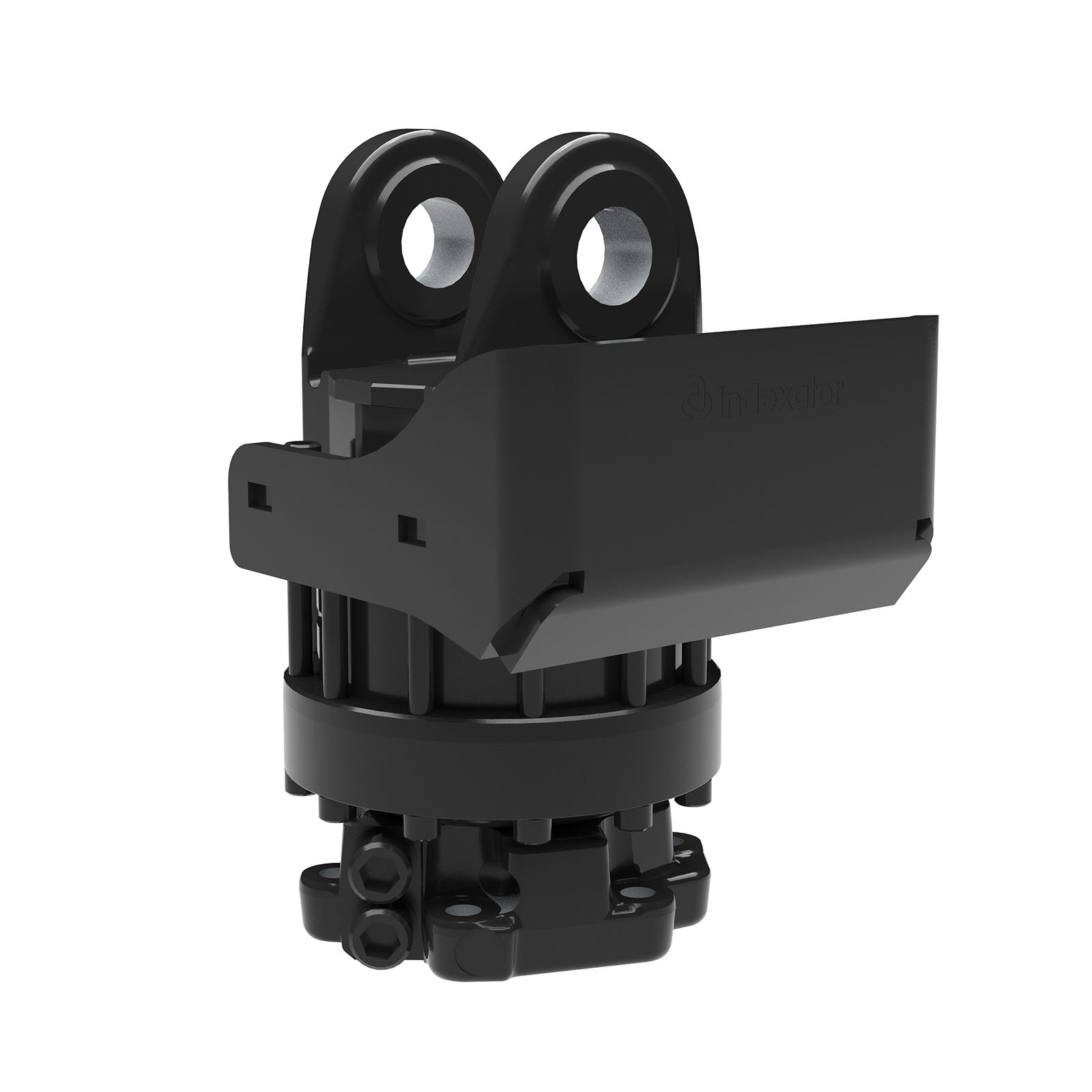

Rotator GV 14S A Y HD
Technical data
| Part No. | 5140001 |
|---|---|
| Type of rotator | Grapple rotator |
| 65 kg | |
| 360° | |
| 100 kN | |
| 50 kN | |
| 3300 Nm | |
| 35 l/min | |
| 25 MPa | |
| 30 MPa | |
| 30 MPa |
Function
| Protected Hose Routing |
Interface
| Upper interface | 100 mm |
|---|---|
| Lower interface | Ø 173 mm |
Rotator with only axial connections for a grapple function.
Rotators with the term HD has a hose guard with extra thick material (10 mm), compared to rotators designated with Y or Y XL (6 mm).
Adapter sets are available for alternative connections.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| GV 14S A Y HD | |
|---|---|
| A | 101 mm |
| B | Ø45 mm |
| C | Ø173 mm |
| D | Ø17 mm |
| F | 30 mm |
| H | 333 mm |
| K | 38,5 mm |
| L | Ø227 mm |
| M | 183 mm |
| N | 10 mm |
| Connections | ||
|---|---|---|
| Upper connection | G 1/2 | |
| Lower connection | G 1/2 | |
