Technical data

Part No.	5002284

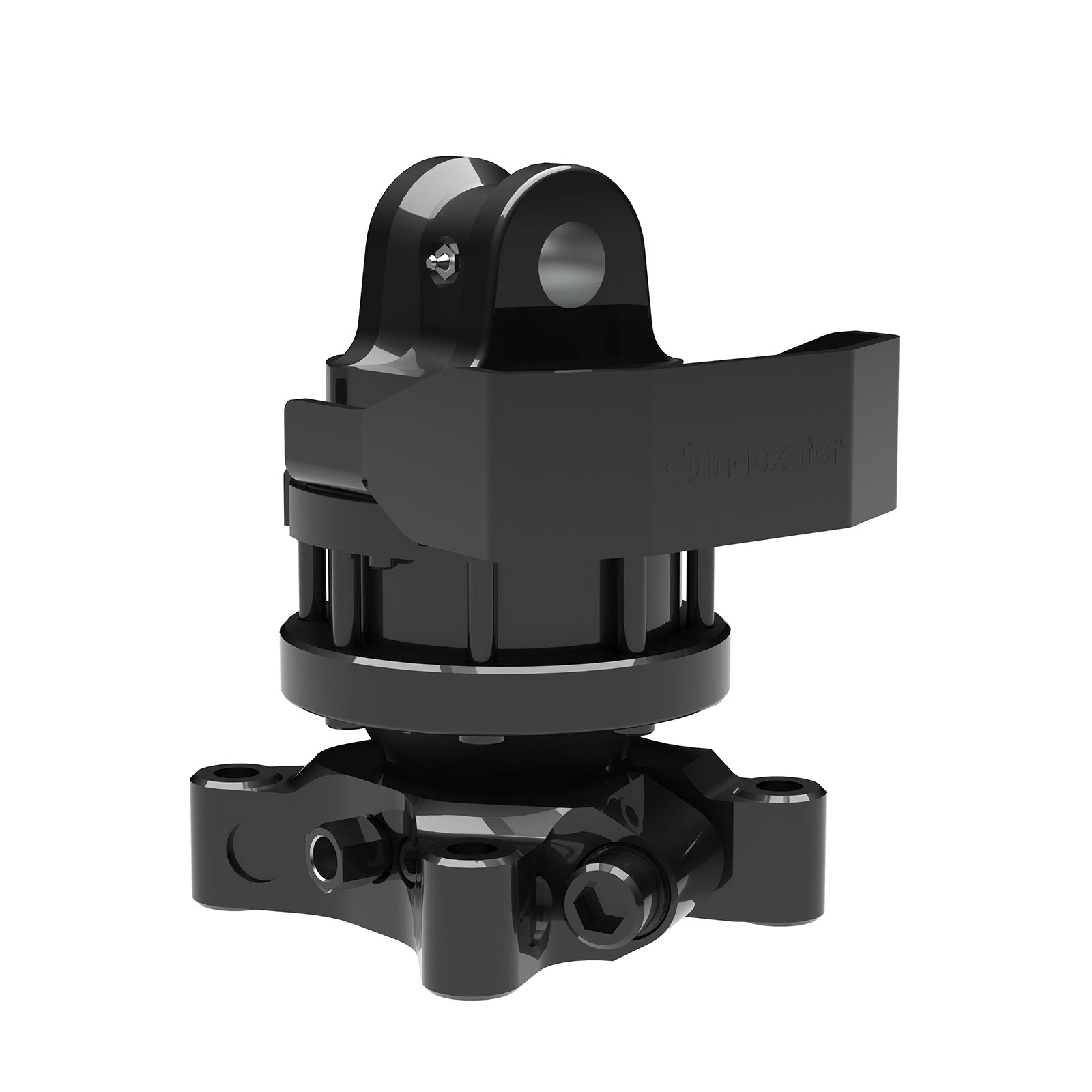

Type of rotator	Grapple rotator
	23.8 kg
	360°
	30 kN1
	12.5 kN
	950 Nm
	10 l/min
	25 MPa
	20 MPa2
	30 MPa

Interface

Upper interface	75 mm
Lower interface	140 mm x 140 mm

¹ 40 kN when mounted to a piece goods crane.

² 25 MPa when mounted to a piece goods crane.

K = 140×140 mm lower hole pattern.

Adapter sets are available for alternative connections.

We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
