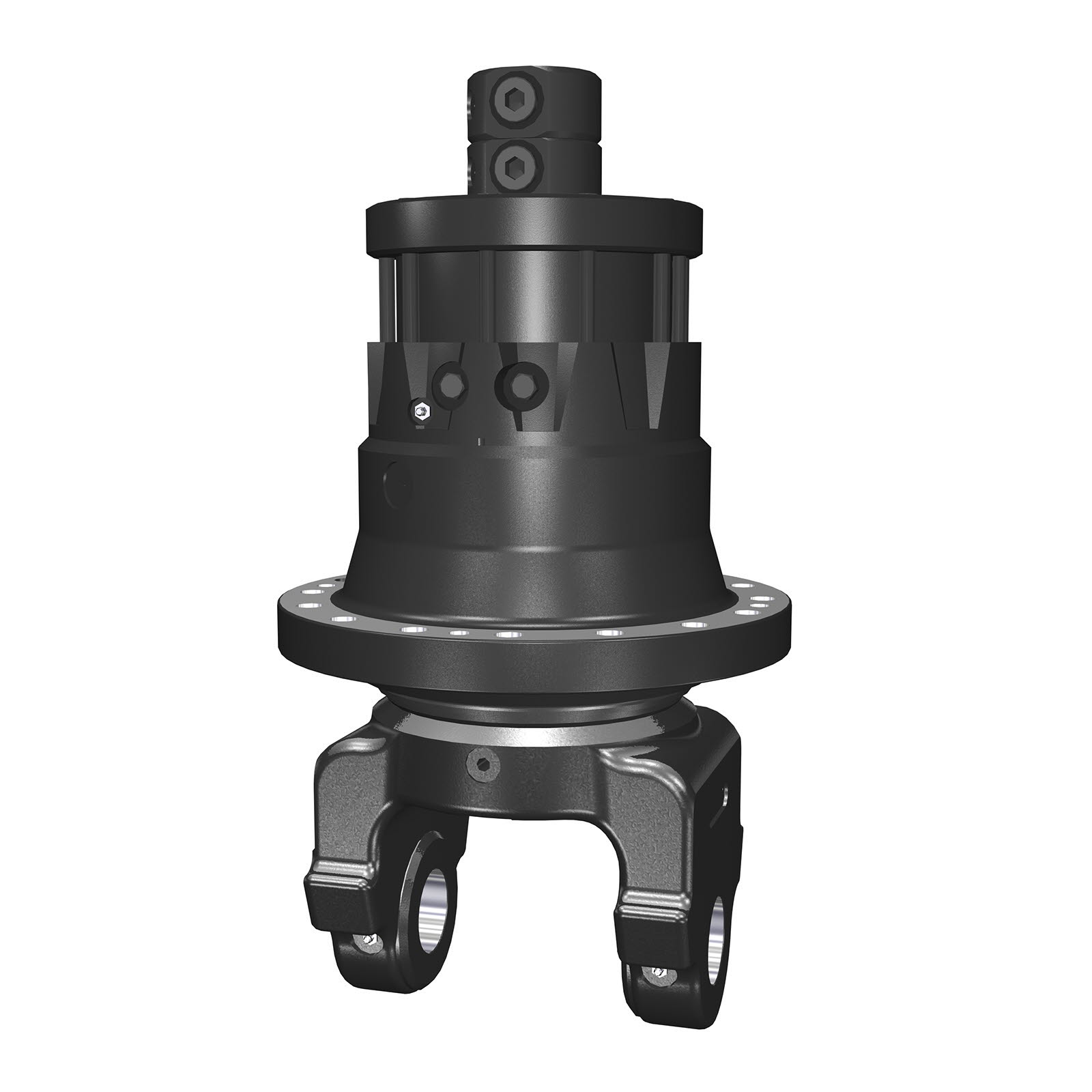

Rotator SR 211B2
Technical data
| Part No. | 8030016 |
|---|---|
| Type of rotator | Grapple rotator |
| 199 kg | |
| 360° | |
| ±190 kN | |
| ±130 kN | |
| 4100 Nm | |
| 35 l/min | |
| 25 MPa | |
| 25 MPa | |
| 25 MPa |
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| SR 211B2 | |
|---|---|
| A | 168,9 mm |
| B | Ø76,2 mm |
| C | 290 mm |
| D | Ø390 mm |
| E | Ø311 mm |
| F | 36 mm |
| G | 712 mm |
| I | 386 mm |
| J | Ø346 mm |
| K | Ø16 mm |
| L | Ø21 mm |
| M | 90° |
| N | 22,5° |
| O | 11,2° |
| Connections | ||
|---|---|---|
| Upper connection | 1 1/16”-12 UNF | |
| Lower connection | 1 1/16”-12 UNF | |
| Lower | R | 9/16”-18 UNF |
