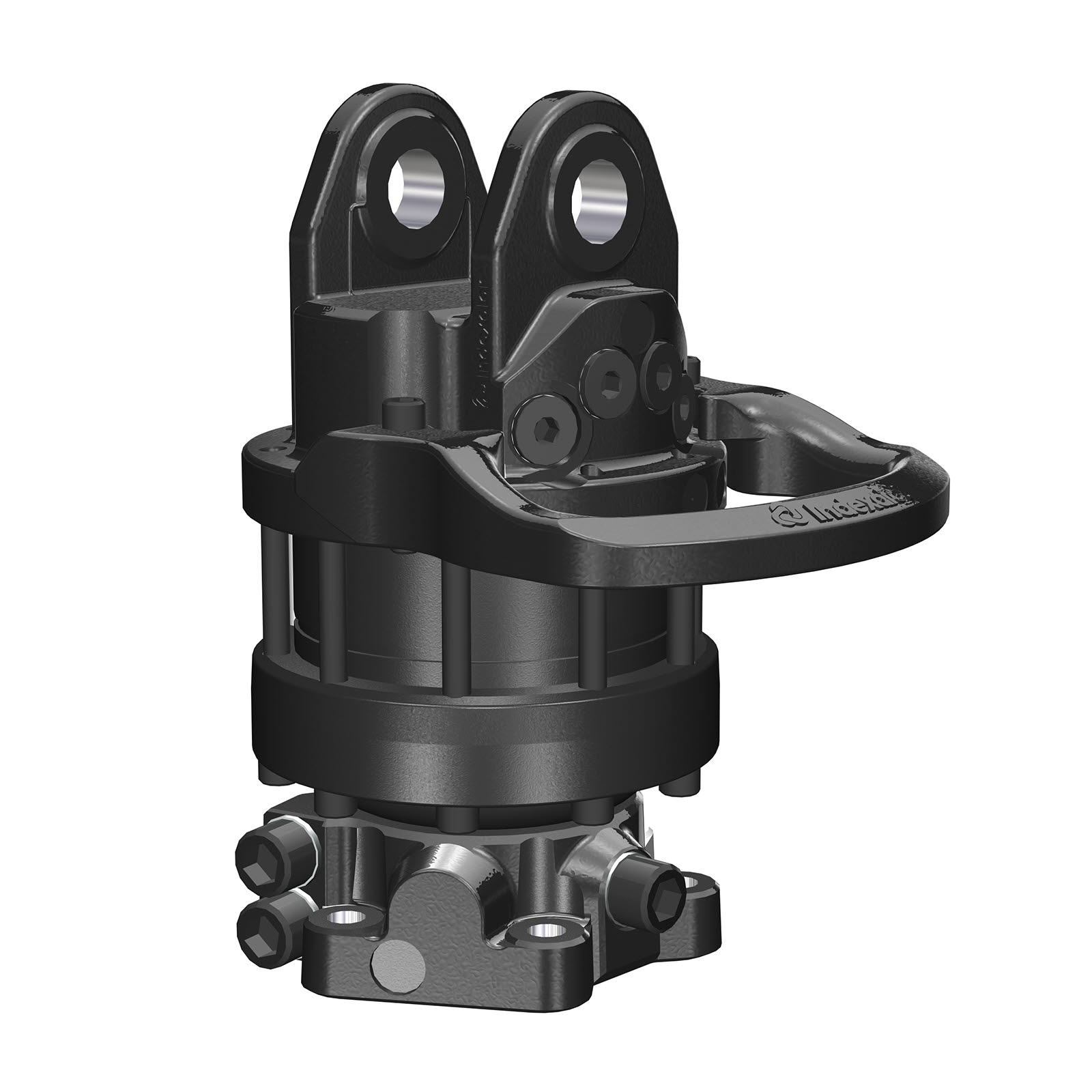

Rotator T 10 A
Technical data
| Part No. | 5080050 |
|---|---|
| Type of rotator | Grapple rotator |
| 52 kg | |
| 360° | |
| 100 kN | |
| 50 kN | |
| 30 kN | |
| 2200 Nm | |
| 20 l/min | |
| 25 MPa | |
| 25 MPa | |
| 25 MPa |
Function
| Load Sense |
Interface
| Upper interface | 80 mm |
|---|---|
| Lower interface | Ø 173 mm |
A rotator with the shortening LS is not equipped with restrictors (unlike our standard rotators). This means that the oil flow from the base machine has to be adapted.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| T 10 A | |
|---|---|
| A | 80,5 mm |
| B | Ø35 mm |
| C | Ø173 mm |
| D | Ø17 mm |
| F | 30 mm |
| H | 330 mm |
| K | 36 mm |
| L | Ø231 mm |
| M | 205 mm |
| Connections | ||
|---|---|---|
| Upper connection | G 1/2 | |
| Lower connection | G 1/2 | |
