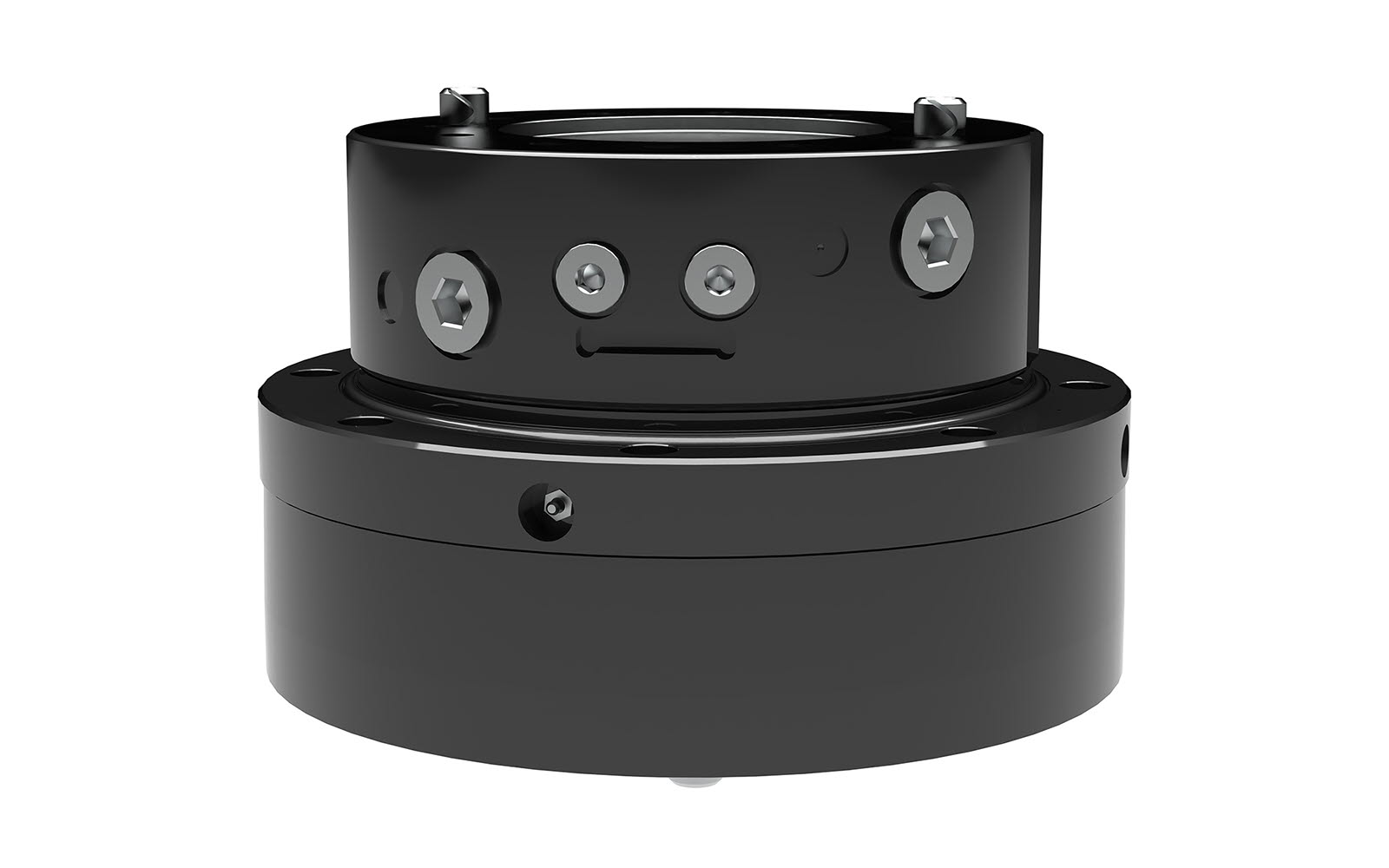

Rotator XR 350 LS 220
Technical data
| Part No. | 8350005 |
|---|---|
| Type of rotator | Grapple rotator |
| 121 kg | |
| 360° | |
| ±500 kN | |
| ±150 kN | |
| ±110 kN | |
| ±39 kNm | |
| 4350 Nm | |
| 35 l/min | |
| 25 MPa | |
| 40 MPa | |
| 40 MPa |
Function
| Load Sense |
Interface
| Upper interface | Ø 220 mm |
|---|---|
| Lower interface | Ø 340 mm |
A rotator with the shortening LS is not equipped with restrictors (unlike our standard rotators). This means that the oil flow from the base machine has to be adapted.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| XR 350 LS 220 | |
|---|---|
| A | Ø300 mm |
| AA | 6° |
| B | M20 |
| C | 32 mm |
| D | Ø170 mm |
| E | Ø220 mm |
| F | Ø379 mm |
| G | 123 mm |
| H | Ø22 mm |
| I | Ø340 mm |
| J | 45° |
| L | 233 mm |
| M | 30° |
| N | 34° |
| O | Ø22 mm |
| P | 15° |
| Q | M12 |
| R | 45° |
| S | Ø116 mm |
| T | 29 mm |
| U | 26° |
| Y | Ø22 mm |
| Z | 292 mm |
| Connections | ||
|---|---|---|
| Upper | G G0 | G 1 |
| R | G 1/2 | |
