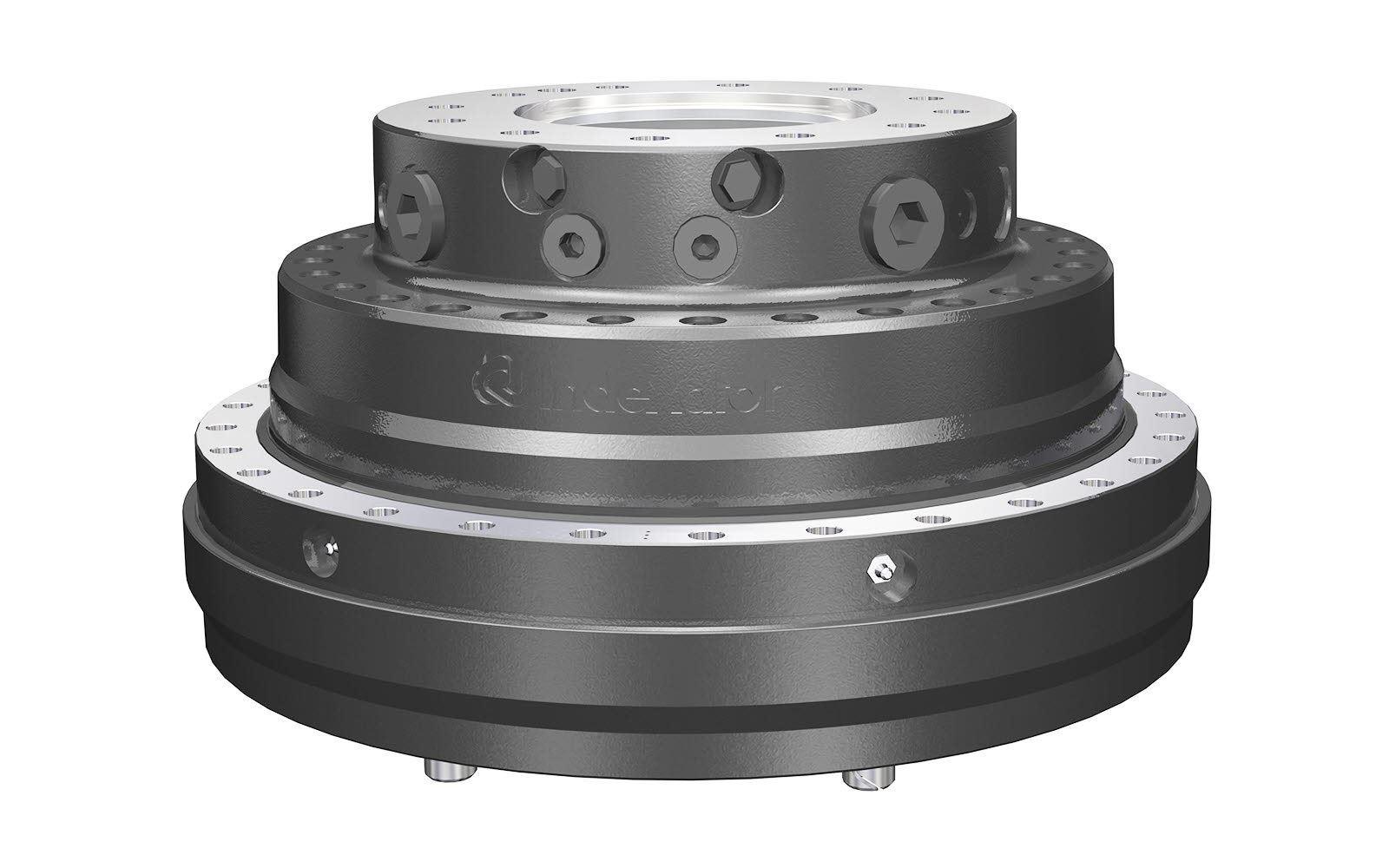

Rotator XR 400 I
Technical data
| Part No. | 8400009 |
|---|---|
| Type of rotator | Grapple rotator |
| 185 kg | |
| 360° | |
| ±550 kN1 | |
| ±200 kN | |
| ±140 kN | |
| ±47 kNm2 | |
| 4100 Nm | |
| 35 l/min | |
| 25 MPa | |
| 40 MPa | |
| 40 MPa |
Interface
| Upper interface | Ø 240 mm |
|---|---|
| Lower interface | Ø 450 mm |
1 Max axial load static indicate theoretical max load for hanging applications without accelerations.
2 The bending moment may not be combined with axial load.
Rotator modified for mounting, part number 8000 775.
Pressure limiting valves fitted in the motor.
Can be supplemented with hose guard.
Oil distributor ordered separately.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| XR 400 I | |
|---|---|
| A | Ø300 mm |
| AB | 174 mm |
| AC | 390 mm |
| B | M20 |
| C | 44 mm |
| D | Ø170 mm |
| E | Ø240 mm |
| F | Ø488 mm |
| G | 99 mm |
| H | Ø14 mm |
| I | Ø450 mm |
| J | 12° |
| K | Ø474 mm |
| L | 244 mm |
| M | 30° |
| O | Ø20 mm |
| P | 15° |
| Q | M12 |
| R | 45° |
| S | Ø116 mm |
| T | 29 mm |
| Y | Ø22 mm |
| Connections | ||
|---|---|---|
| Upper | G G0 | G 1 |
| R | G 1/2 | |
