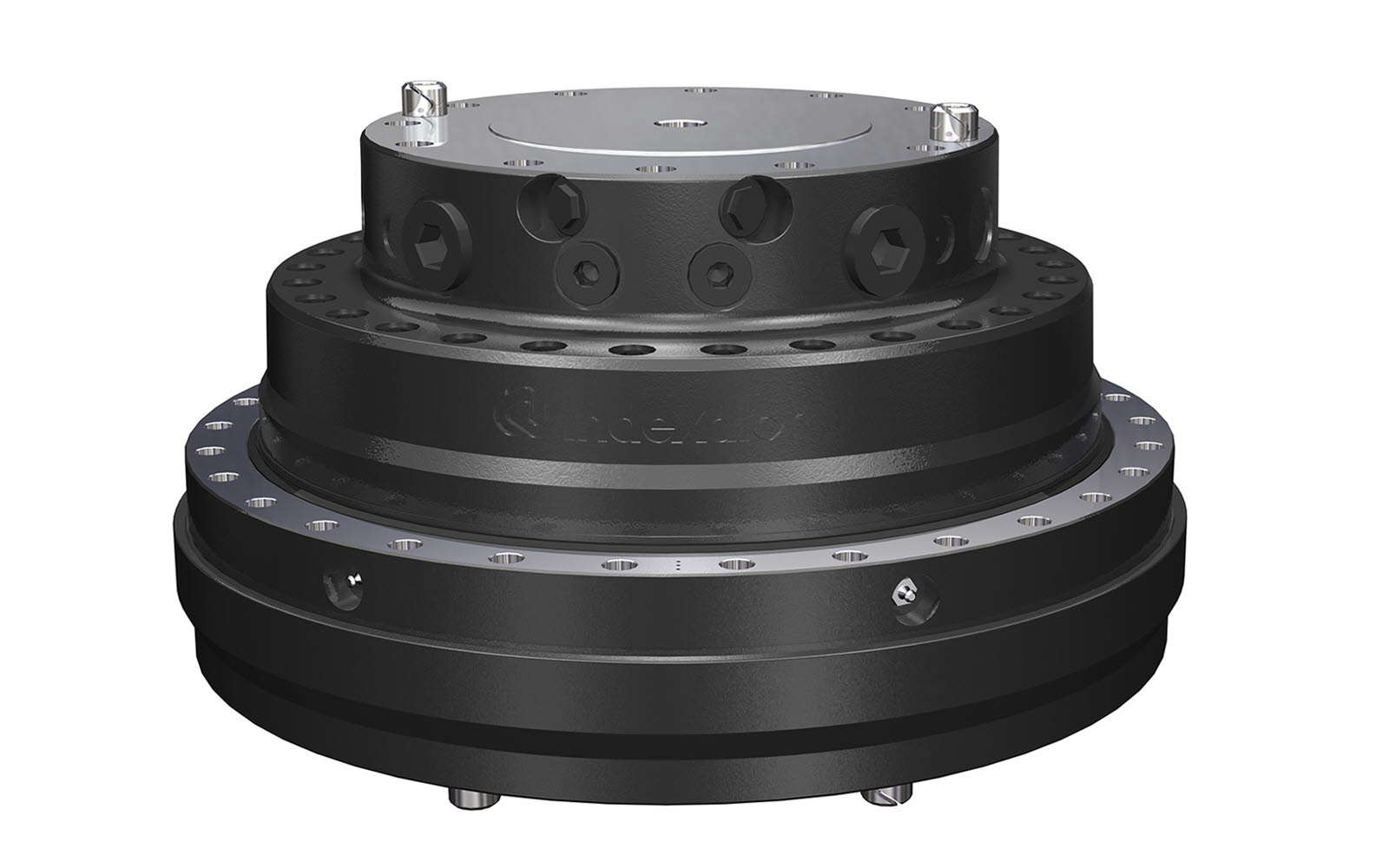

Rotator XR 400 P
Technical data
| Part No. | 8400014 |
|---|---|
| Type of rotator | Grapple rotator |
| 184 kg | |
| 360° | |
| ±550 kN1 | |
| ±200 kN | |
| ±140 kN | |
| ±47 kNm2 | |
| 4100 Nm | |
| 35 l/min | |
| 25 MPa | |
| 40 MPa | |
| 40 MPa |
Interface
| Upper interface | Ø 265 mm |
|---|---|
| Lower interface | Ø 450 mm |
1 Max axial load static indicate theoretical max load for hanging applications without accelerations.
2 The bending moment may not be combined with axial load.
Rotator with a centred hole for e.g. wiring.
Pressure limiting valves fitted in the motor.
Can be supplemented with hose guard.
Oil distributor ordered separately.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| XR 400 P | |
|---|---|
| A | Ø300 mm |
| AB | 174 mm |
| AC | 390 mm |
| B | M20 |
| C | 34 mm |
| D | Ø170 mm |
| E | Ø265 mm |
| F | Ø488 mm |
| G | 99 mm |
| H | Ø14 mm |
| I | Ø450 mm |
| J | 12° |
| K | Ø474 mm |
| L | 244 mm |
| M | 30° |
| N | 34° |
| O | Ø22 mm |
| P | 15° |
| Q | M12 |
| R | 45° |
| S | Ø116 mm |
| T | 29 mm |
| U | 26° |
| V | Ø24 mm |
| Y | Ø22 mm |
| Connections | ||
|---|---|---|
| Upper | G G0 | G 1 |
| R | G 1/2 | |
