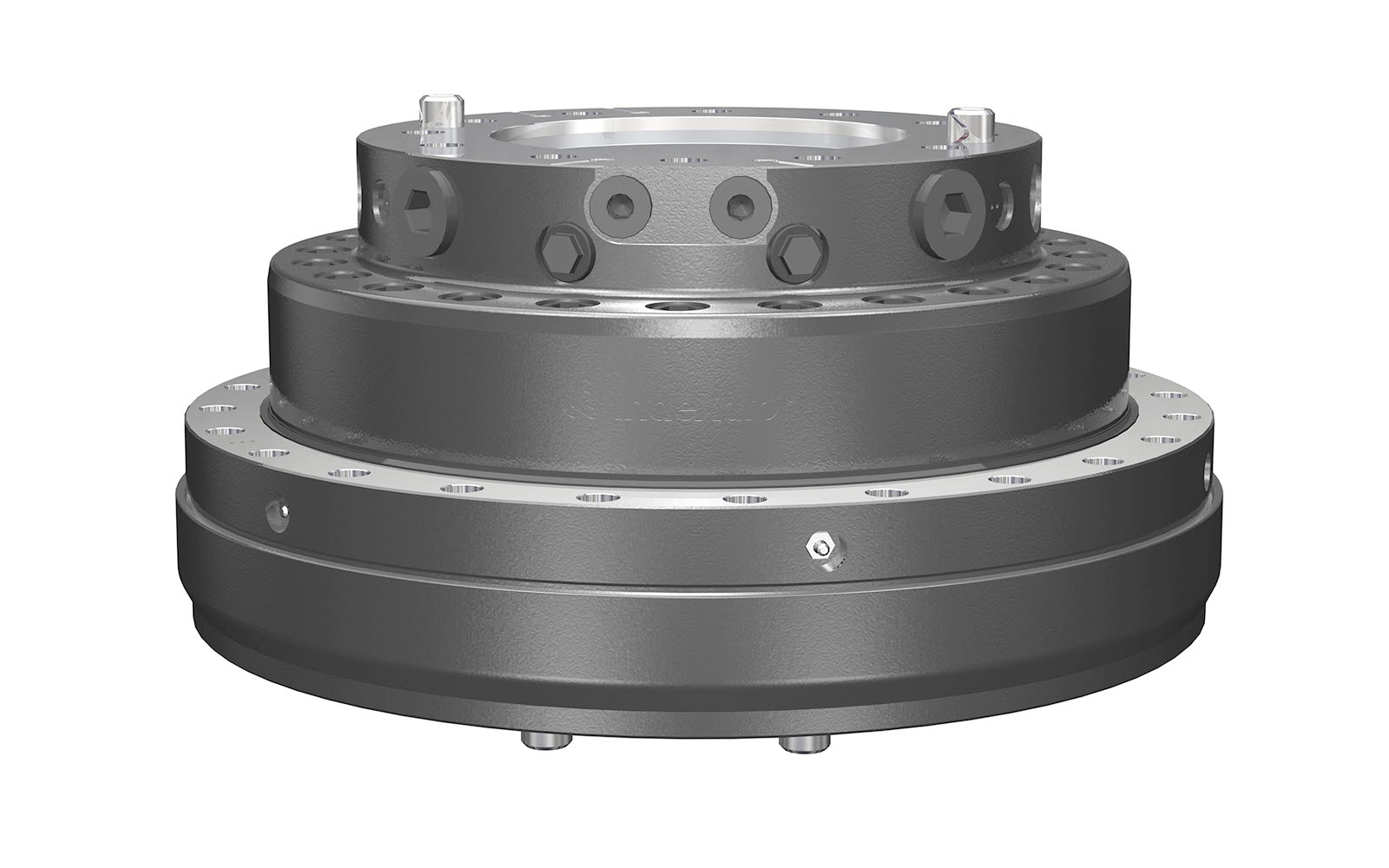

Rotator XR 500
Technical data
| Part No. | 8500000 |
|---|---|
| Type of rotator | Grapple rotator |
| 216 kg | |
| 360° | |
| ±700 kN1 | |
| ±250 kN | |
| ±180 kN | |
| ±65 kNm2 | |
| 7000 Nm | |
| 40 l/min | |
| 25 MPa | |
| 35 MPa | |
| 35 MPa |
Interface
| Upper interface | Ø 265 mm |
|---|---|
| Lower interface | Ø 463 mm |
1 Max axial load static indicate theoretical max load for hanging applications without accelerations.
2 The bending moment may not be combined with axial load.
Pressure limiting valves fitted in the motor.
Oil distributor ordered separately.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| XR 500 | |
|---|---|
| A | Ø326 mm |
| AB | 110 mm |
| AC | 406 mm |
| B | M24 |
| C | 41 mm |
| D | Ø200 mm |
| E | Ø265 mm |
| F | Ø503 mm |
| G | 98,5 mm |
| H | Ø17,5 mm |
| I | Ø463 mm |
| J | 15° |
| K | Ø490 mm |
| L | 228,5 mm |
| M | 30° |
| N | 34° |
| O | Ø22 mm |
| P | 15° |
| Q | M12 |
| R | 72° |
| S | Ø140 mm |
| T | 33 mm |
| U | 26° |
| Y | Ø22 mm |
| Connections | ||
|---|---|---|
| Upper | G G0 | G 1 |
| R | G 1/2 | |
