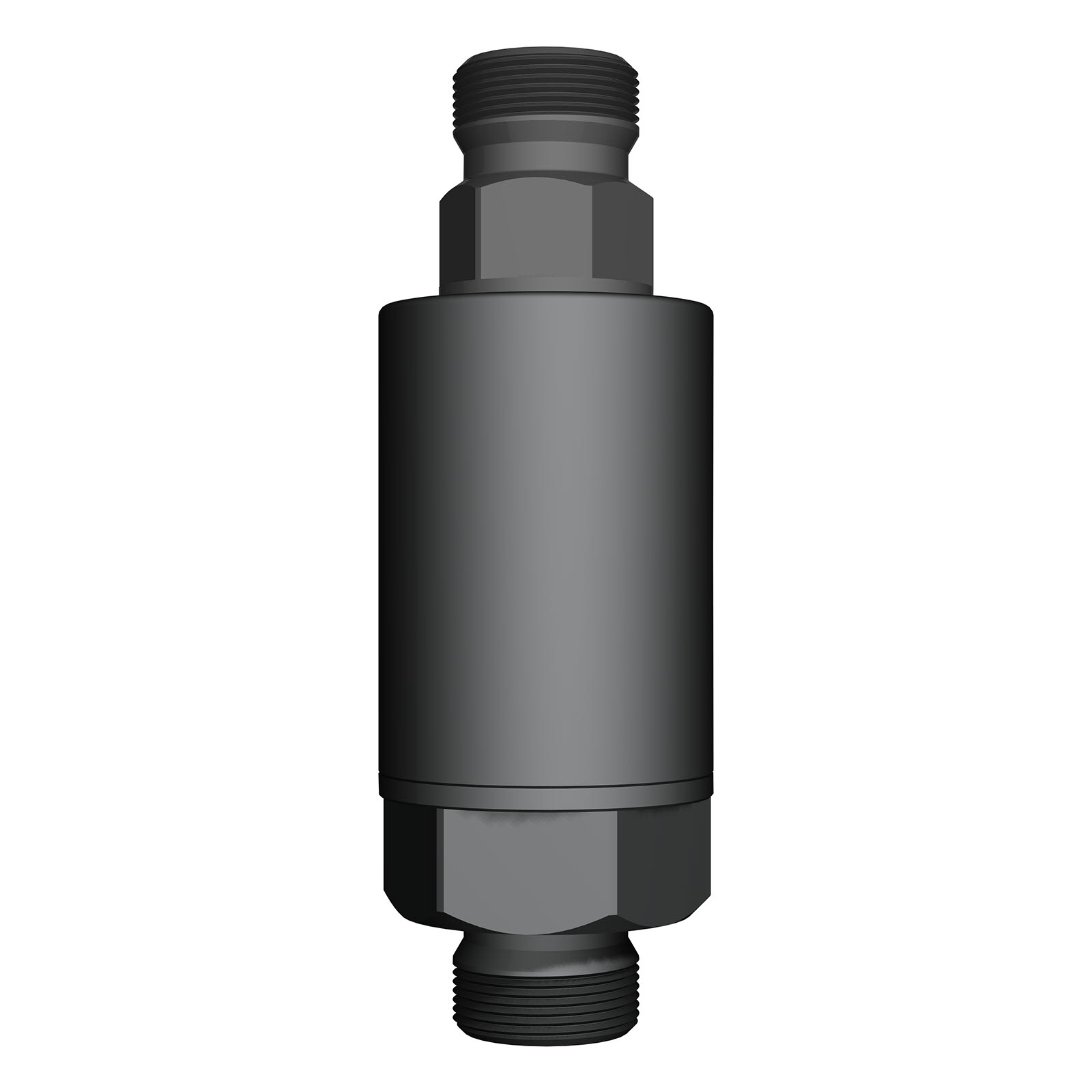

K100 13/16”-16 UNF - 13/16”-16 UNF
Technical data
| Part No. | 9010063 |
|---|---|
| Type | Male x Male |
| Type of connection | ORFS |
| Max work pressure | 45 MPa |
| Dash size | 8 |
| Seal kit | 6002515 |
| 0.55 kg |
Temperature range (standard) = -30° C - +100° C Pressures as listed should be used as guide only and not as a specification.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| K100 13/16”-16 UNF - 13/16”-16 UNF | |
|---|---|
| B1 | 13/16”-16 UNF |
| B2 | 13/16”-16 UNF |
| L | 107 mm |
| ØD | 9.5 mm |
| NV1 | 32 mm |
| NV2 | 21 mm |
| ØA | 37 mm |
