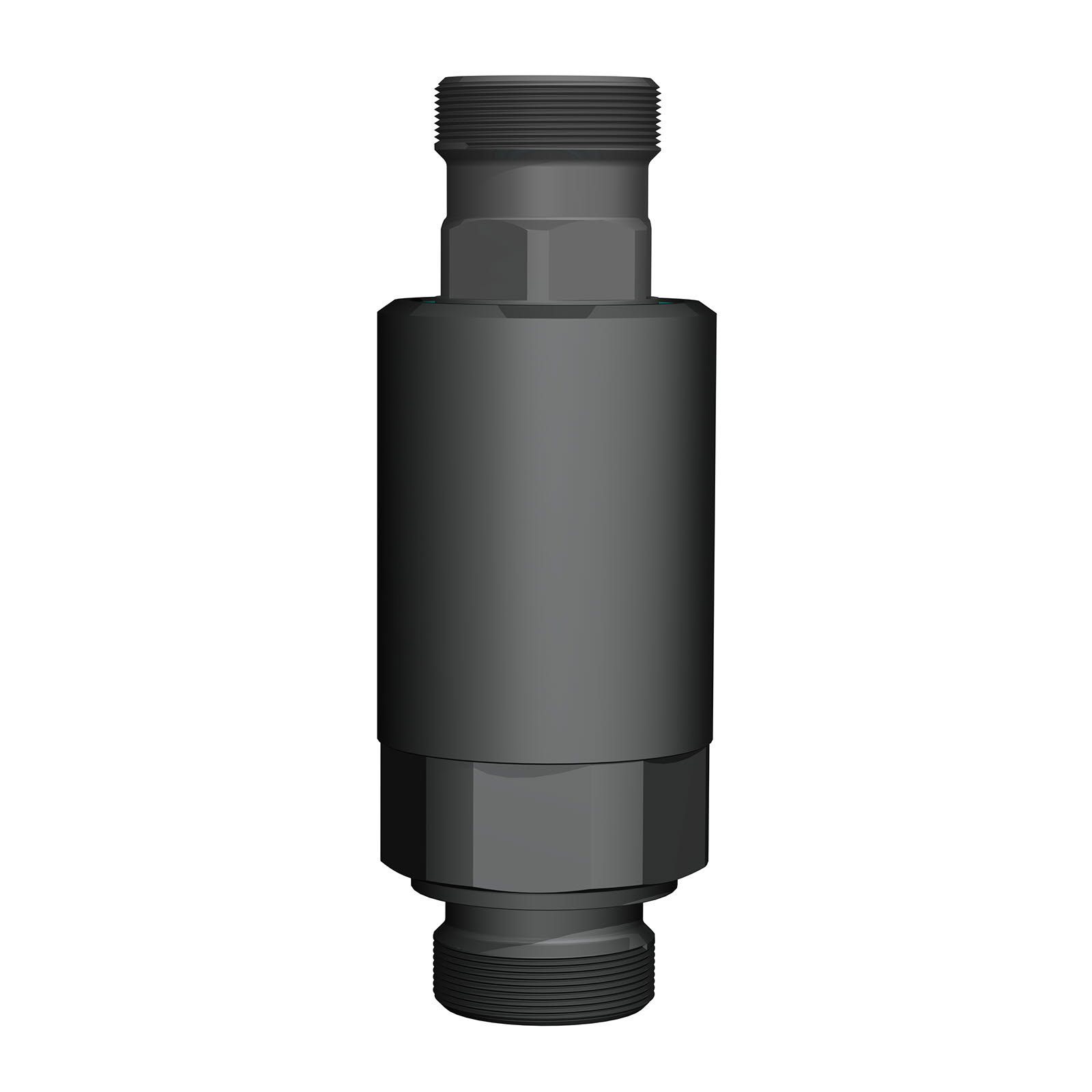

K100 G1 EDxG1
Technical data
| Part No. | 9010045 |
|---|---|
| Type | Male x Male |
| Type of connection | G ED-G |
| Max work pressure | 45 MPa |
| Seal kit | 6002517 |
| 1.19 kg |
G = BSP, 60° cone Temperature range (standard) = -30° C - +100° C ED, soft-seated Pressures as listed should be used as guide only and not as a specification.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| K100 G1 EDxG1 | |
|---|---|
| B1 | G 1 ED |
| B2 | G 1 |
| L | 138 mm |
| ØD | 20 mm |
| NV1 | 46 mm |
| NV2 | 30 mm |
| ØA | 50 mm |
