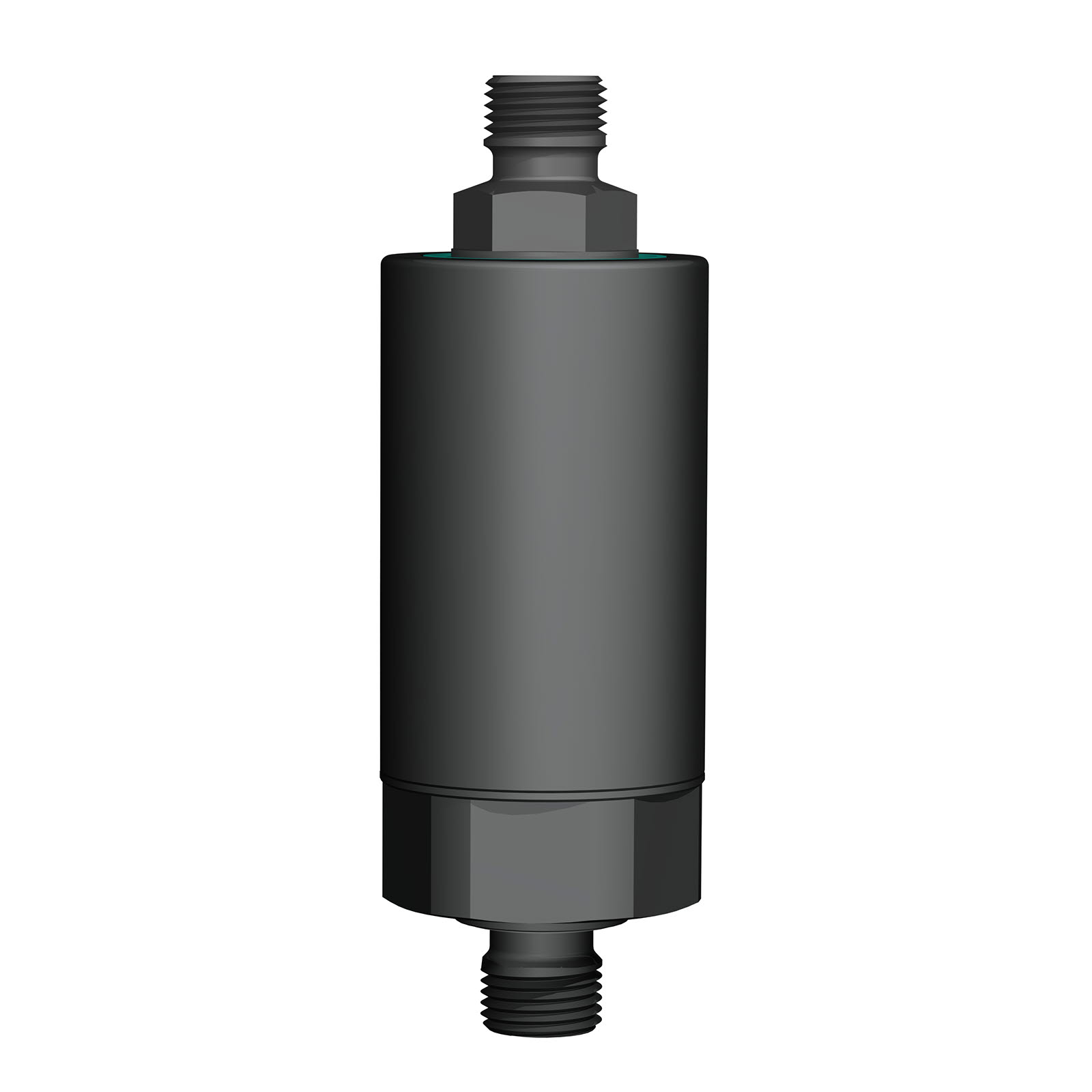

K100 G1/4 EDxG1/4
Technical data
| Part No. | 9010043 |
|---|---|
| Type | Male x Male |
| Type of connection | G ED-G |
| Max work pressure | 45 MPa |
| Seal kit | 6003296 |
| 0.5 kg |
G = BSP, 60° cone Temperature range (standard) = -30° C - +100° C ED, soft-seated Pressures as listed should be used as guide only and not as a specification.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| K100 G1/4 EDxG1/4 | |
|---|---|
| B1 | G 1/4 ED |
| B2 | G 1/4 |
| L | 102 mm |
| ØD | 6 mm |
| NV1 | 32 mm |
| NV2 | 17 mm |
| ØA | 35 mm |
