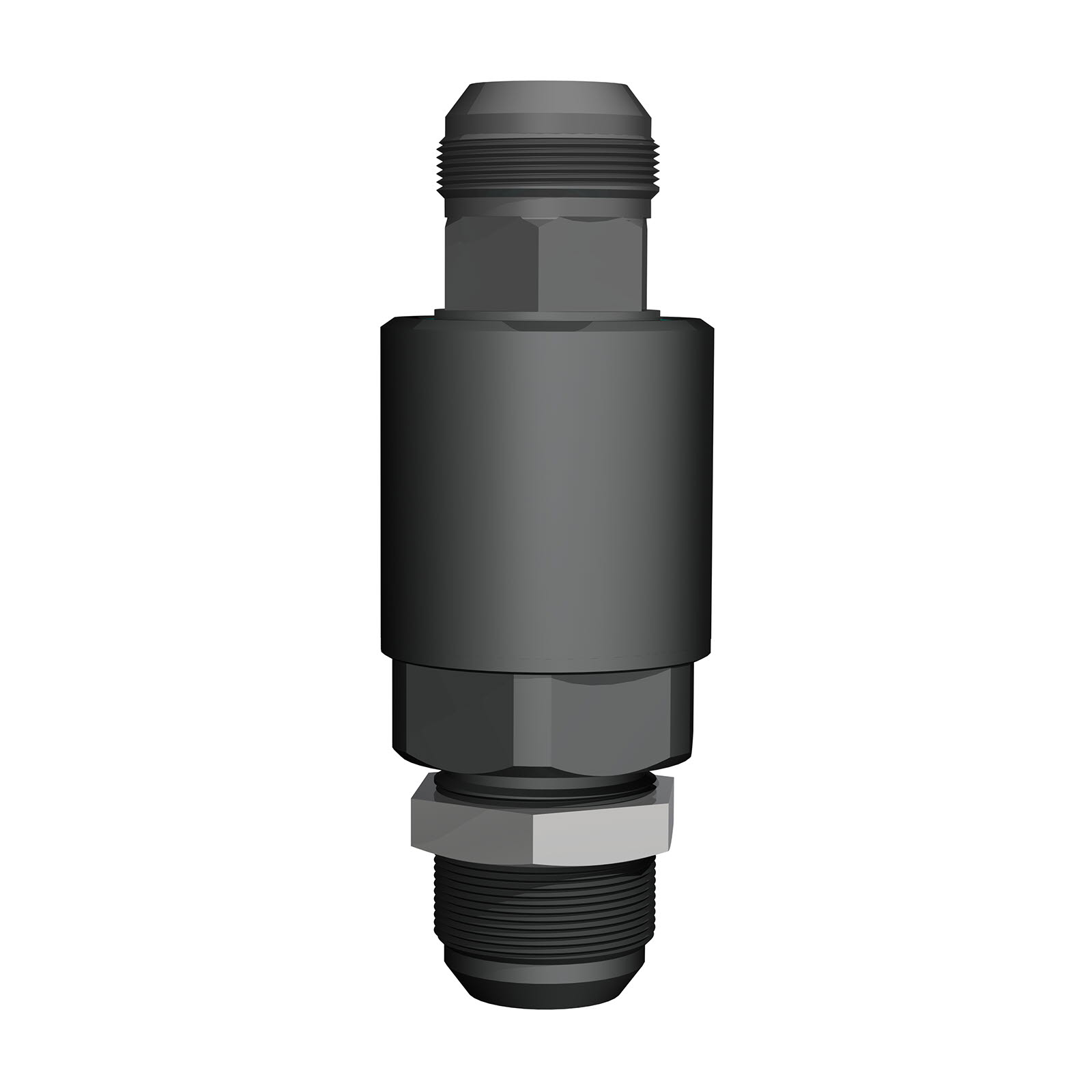

K100 1 5/8”-12 UN - 1 5/8”-12 UN
Technical data
| Part No. | 9010069 |
|---|---|
| Type | Male x Male |
| Type of connection | JIC |
| Max work pressure | 45 MPa |
| Dash size | 20 |
| Seal kit | 6003020 |
| 1.96 kg |
JIC cone, external, 37° JIC internal, SAE O-ring Temperature range (standard) = -30° C - +100° C Pressures as listed should be used as guide only and not as a specification.
K = Bulkhead
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| K100 1 5/8”-12 UN - 1 5/8”-12 UN | |
|---|---|
| B1 | 1 5/8”-12 UN |
| B2 | 1 5/8”-12 UN |
| L | 171 mm |
| ØD | 25 mm |
| NV1 | 55 mm |
| NV2 | 36 mm |
| ØA | 62 mm |
| X | 46 mm |
| Y | 11 mm |
