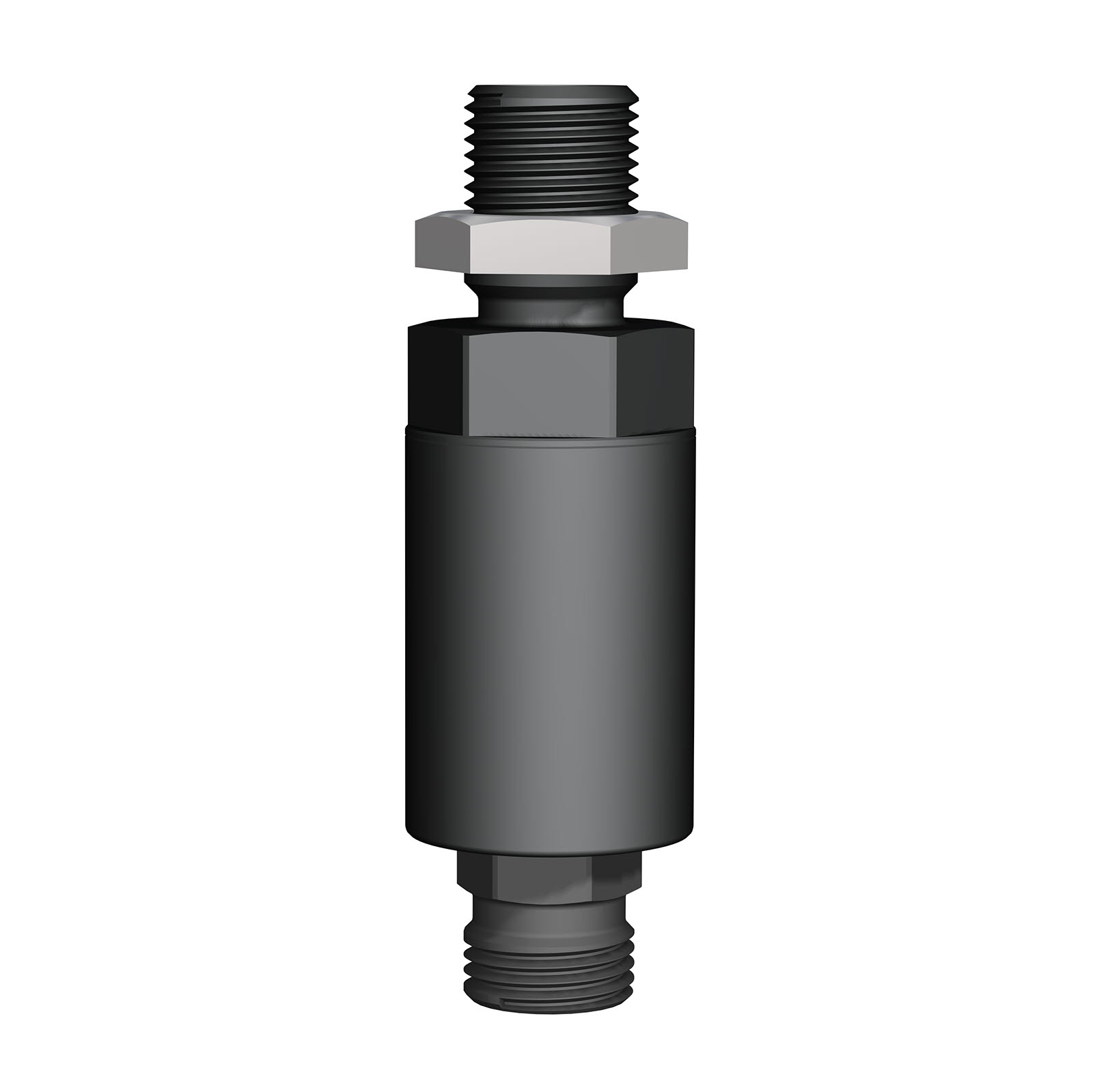

K100 M22x1,5 15L K
Technical data
| Part No. | 9010033 |
|---|---|
| Type | Male x Male |
| Type of connection | M-M |
| Max work pressure | 25 MPa |
| Pressure class | 15L |
| Seal kit | 6002515 |
| 0.51 kg |
M = Metric Temperature range (standard) = -30° C - +100° C Pressures as listed should be used as guide only and not as a specification.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| K100 M22x1,5 15L K | |
|---|---|
| B1 | M22 x 1,5 |
| B2 | M22 x 1,5 |
| L | 117 mm |
| ØD | 12 mm |
| NV1 | 21 mm |
| NV2 | 32 mm |
| ØA | 37 mm |
| X | 30 mm |
| Y | 7 mm |
