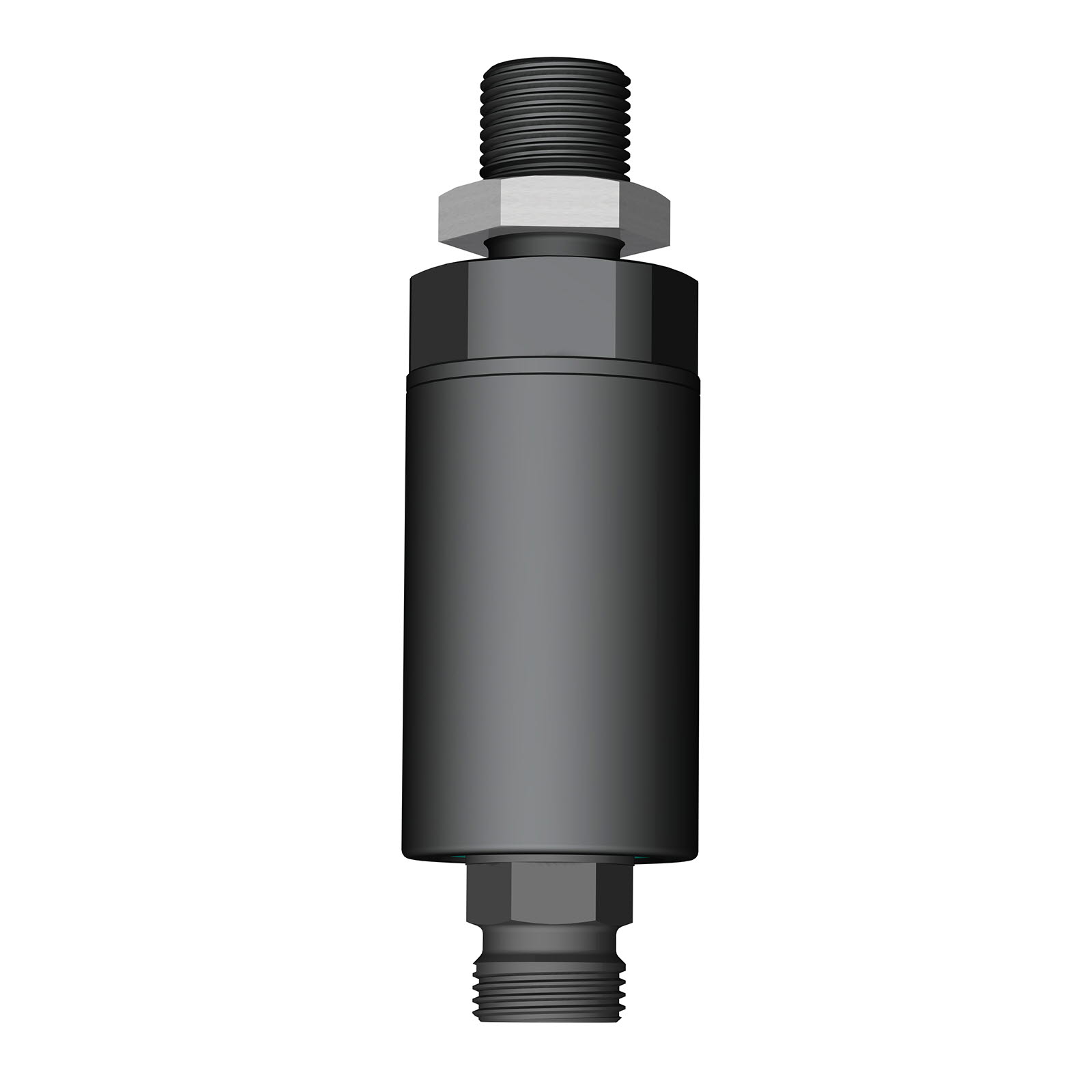

K100 M18x1,5 12L K
Technical data
| Part No. | 9010024 |
|---|---|
| Type | Male x Male |
| Type of connection | M-M |
| Max work pressure | 25 MPa |
| Pressure class | 12 L |
| Seal kit | 6003296 |
| 0.5 kg |
M = Metric Temperature range (standard) = -30° C - +100° C Pressures as listed should be used as guide only and not as a specification.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| K100 M18x1,5 12L K | |
|---|---|
| B1 | M18 x 1,5 |
| B2 | M18 x 1,5 |
| L | 114 mm |
| ØD | 10 mm |
| NV1 | 32 mm |
| NV2 | 17 mm |
| ØA | 35 mm |
| X | 25 mm |
| Y | 6 mm |
