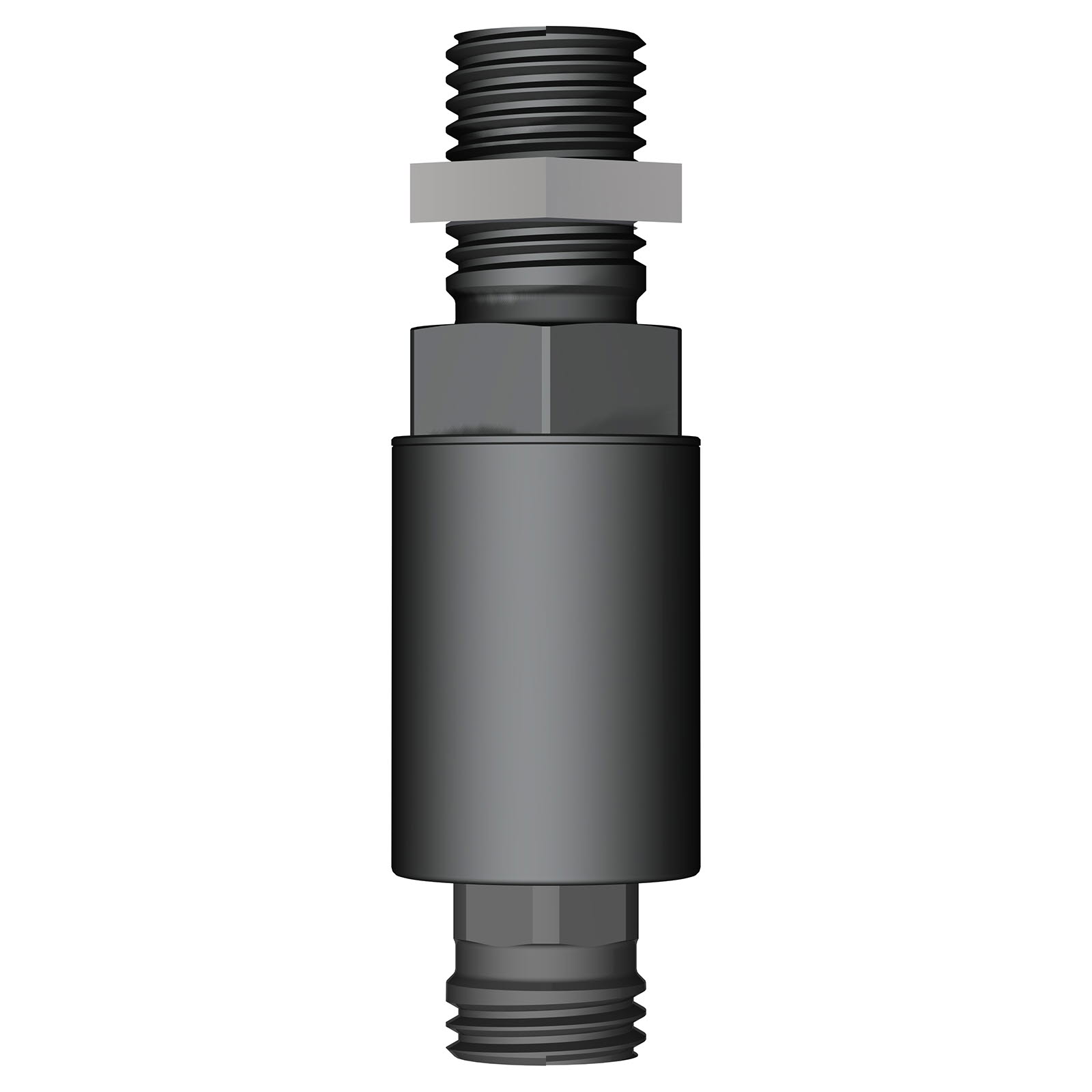

K100 M24x1,5 - M24x1,5
Technical data
| Part No. | 9010051 |
|---|---|
| Type | Male x Male |
| Type of connection | M-M |
| Max work pressure | 40 MPa |
| Pressure class | 16S |
| Seal kit | 6002515 |
| 0.57 kg |
M = Metric Temperature range (standard) = -30° C - +100° C Pressures as listed should be used as guide only and not as a specification.
| K100 M24x1,5 - M24x1,5 | |
|---|---|
| B1 | M24 x 1,5 |
| B2 | M24 x 1,5 |
| L | 122 mm |
| ØD | 12 mm |
| NV1 | 32 mm |
| NV2 | 22 mm |
| ØA | 37 mm |
| X | 35 mm |
| Y | 7 mm |
