| Part No. | 8000785 |
|---|
The upper mounting can be supplemented with hose guard.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com

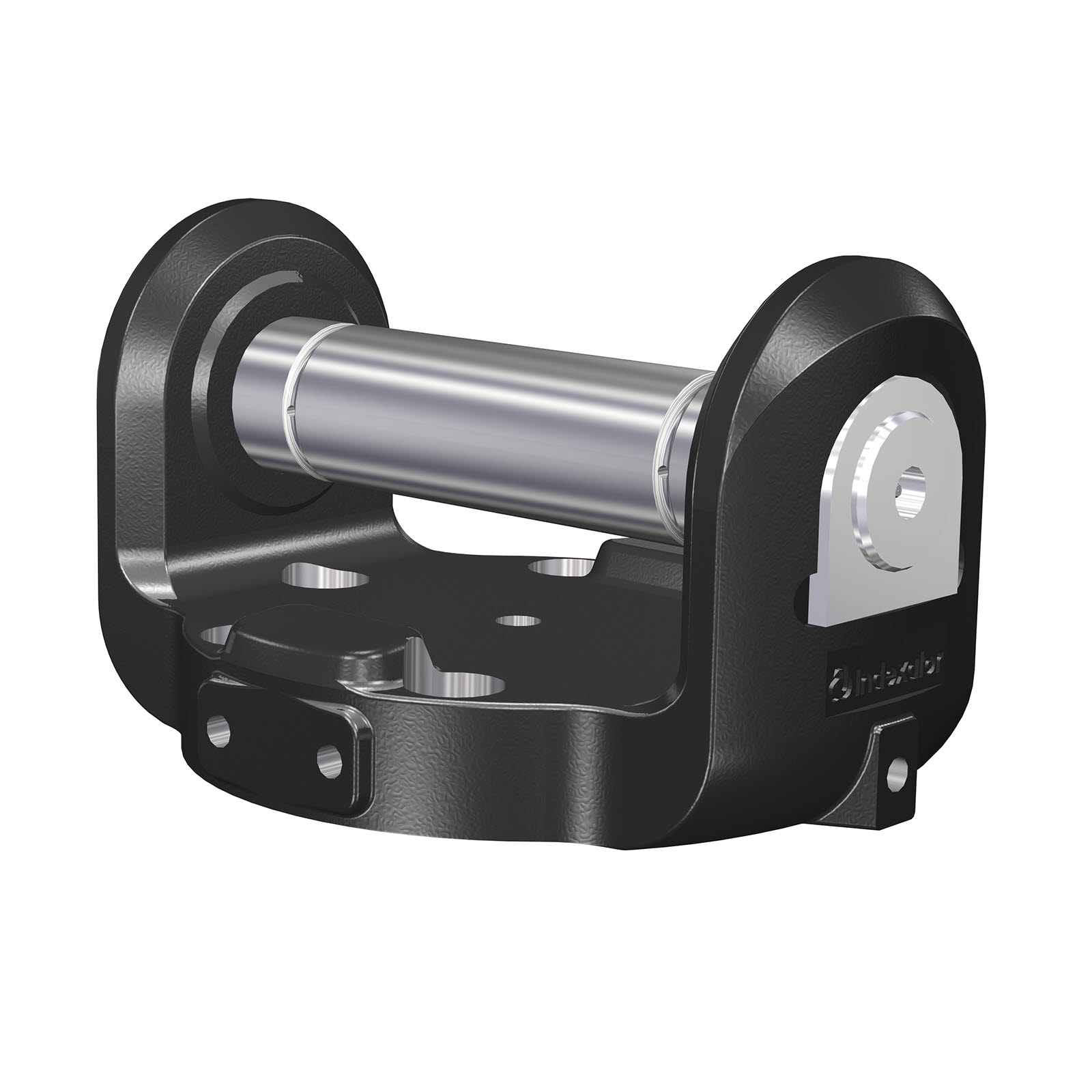

| Mounting IR 20 M24 | |
|---|---|
| A | 275 mm |
| B | Ø70 mm |
| C | 405 mm |
| D | 280 mm |
| H | 133 mm |
| I | 80 mm |
| L | 385 mm |
![[alt-text]](/imagevault/publishedmedia/q7icgvqa8abr4c63bfuo/IR_20_M24_8000513_V.jpg)
![[alt-text]](/imagevault/publishedmedia/00l76mgukobvzdsn82hb/IR_20-5_M24_8000486_V.jpg)
![[alt-text]](/imagevault/publishedmedia/nsxxukszcwx3xzfzg9vd/IR_20M_M24_8000512_V.jpg)
