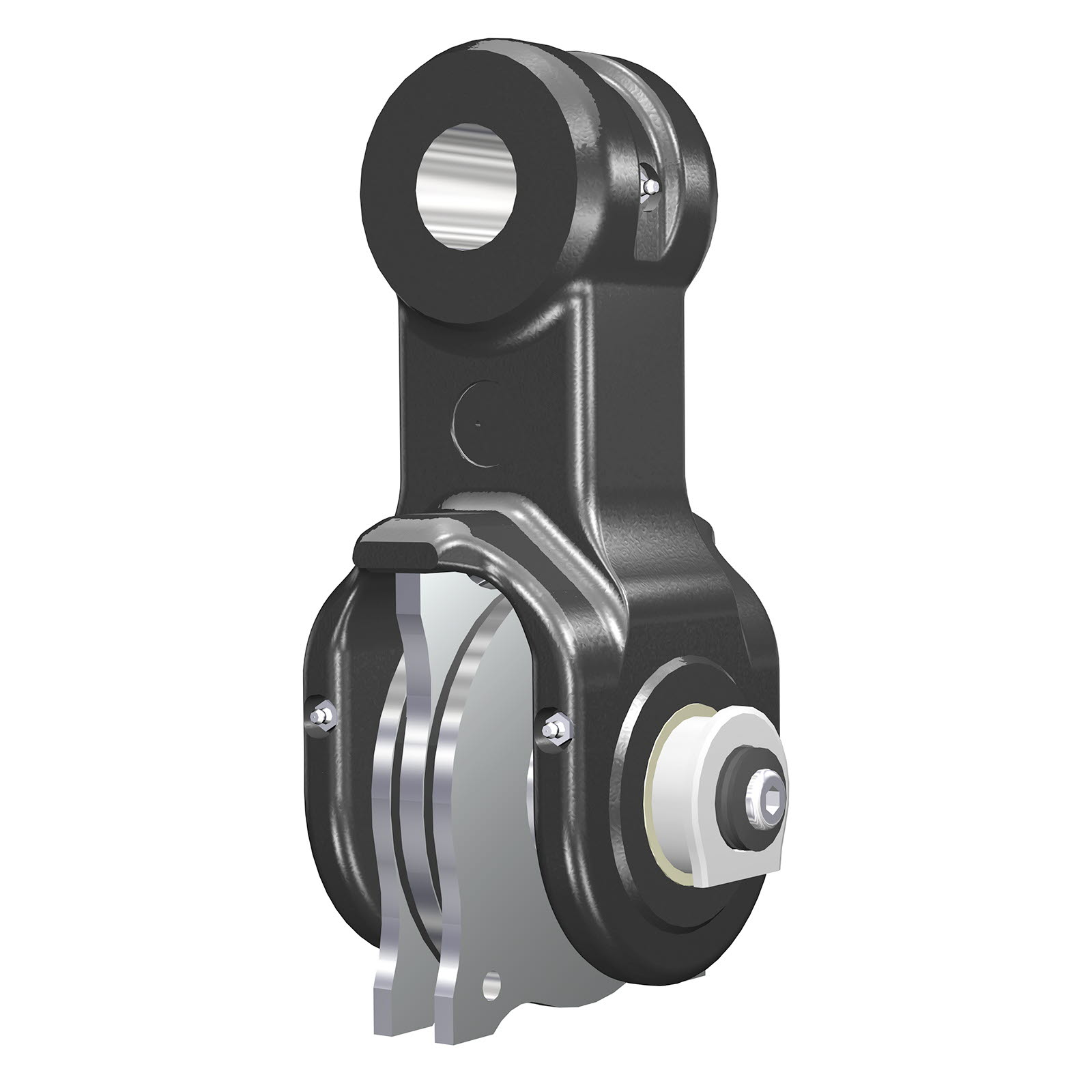

Single swing damper MPB1-100


Technical data

Part No. 5016551
Brake against rotator MPB1
Upper interface 100 mm
Lower interface MPB1 144 mm
31 kg
160 kN

Bushing

Diameter, upper bushing (C) Steel Bronze ManganBronze Composite
Ø45 mm 2 x 1002302 2 x 1005503 2 x 5006683 -
Ø40 mm 2 x 5002467 - - 2 x 5002414

The product is supplied with a pin and bushing in the lower position. The product is supplemented with a bushing in the upper position according to the table.

We reserve the right to make product changes. For further technical information relating to integration, please contact rotator@indexator.com

Single swing damper MPB1-100
A MPB1 144 mm
B MPB 62 mm
C See table
G 100 mm
H 240 mm
Bushing
Diameter, upper bushing (C) Steel Bronze ManganBronze Composite
Ø45 mm 2 x 1002302 2 x 1005503 2 x 5006683 -
Ø40 mm 2 x 5002467 - - 2 x 5002414
