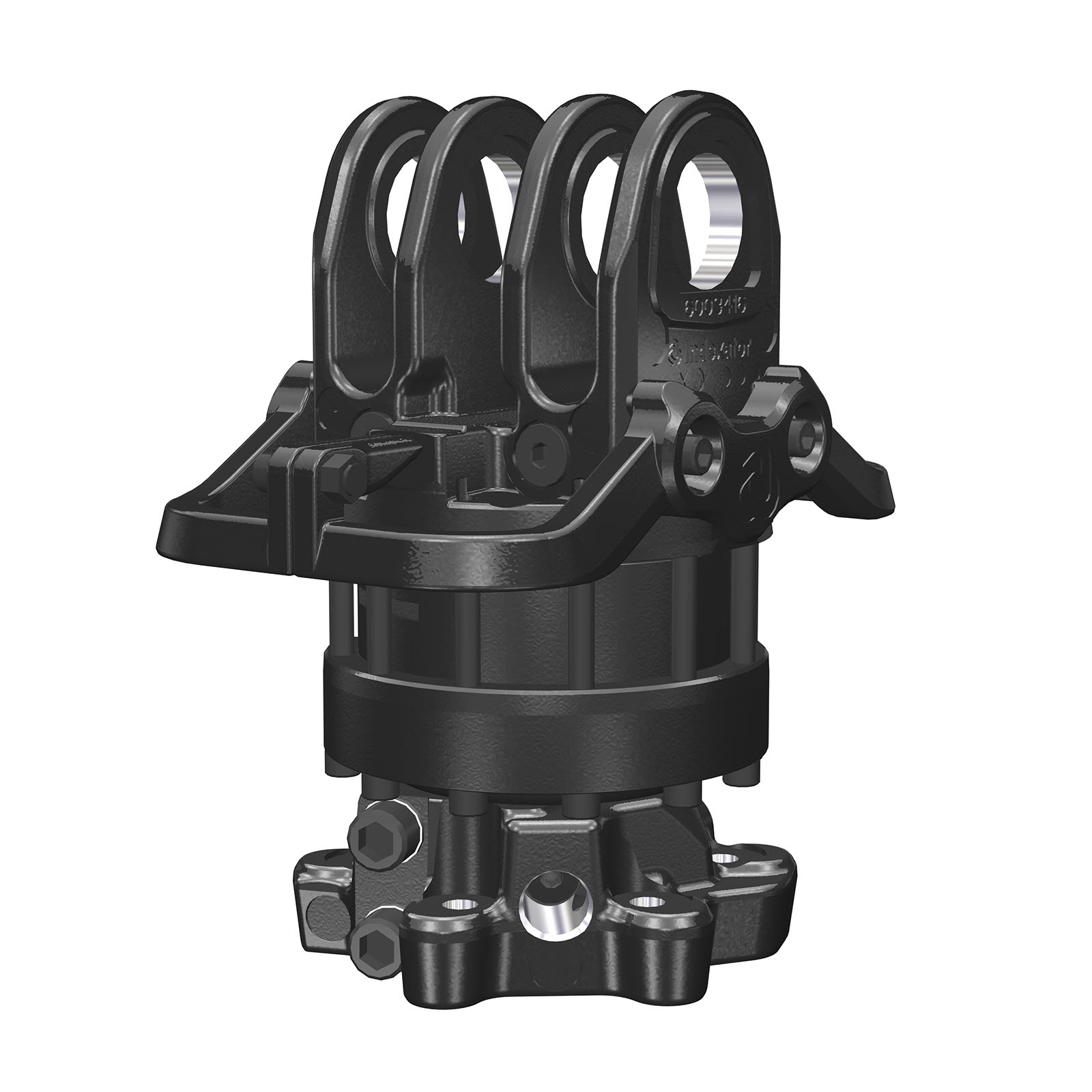

Rotator G 171-2


Technical data

Part No. 7140005
Type of rotator Grapple rotator
66.5 kg
360°
160 kN
50 kN
3300 Nm
35 l/min
25 MPa
30 MPa
30 MPa

Interface

Upper interface MPB1 144 mm
Lower interface Ø 173 mm

We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com

G 171-2
A MPB1
B MPB
C Ø173 mm
D Ø17 mm
F 40 mm
H 352 mm
K 42 mm
L Ø248 mm
M 370 mm
Connections
Upper connection G 1/2
Lower connection G 1/2
