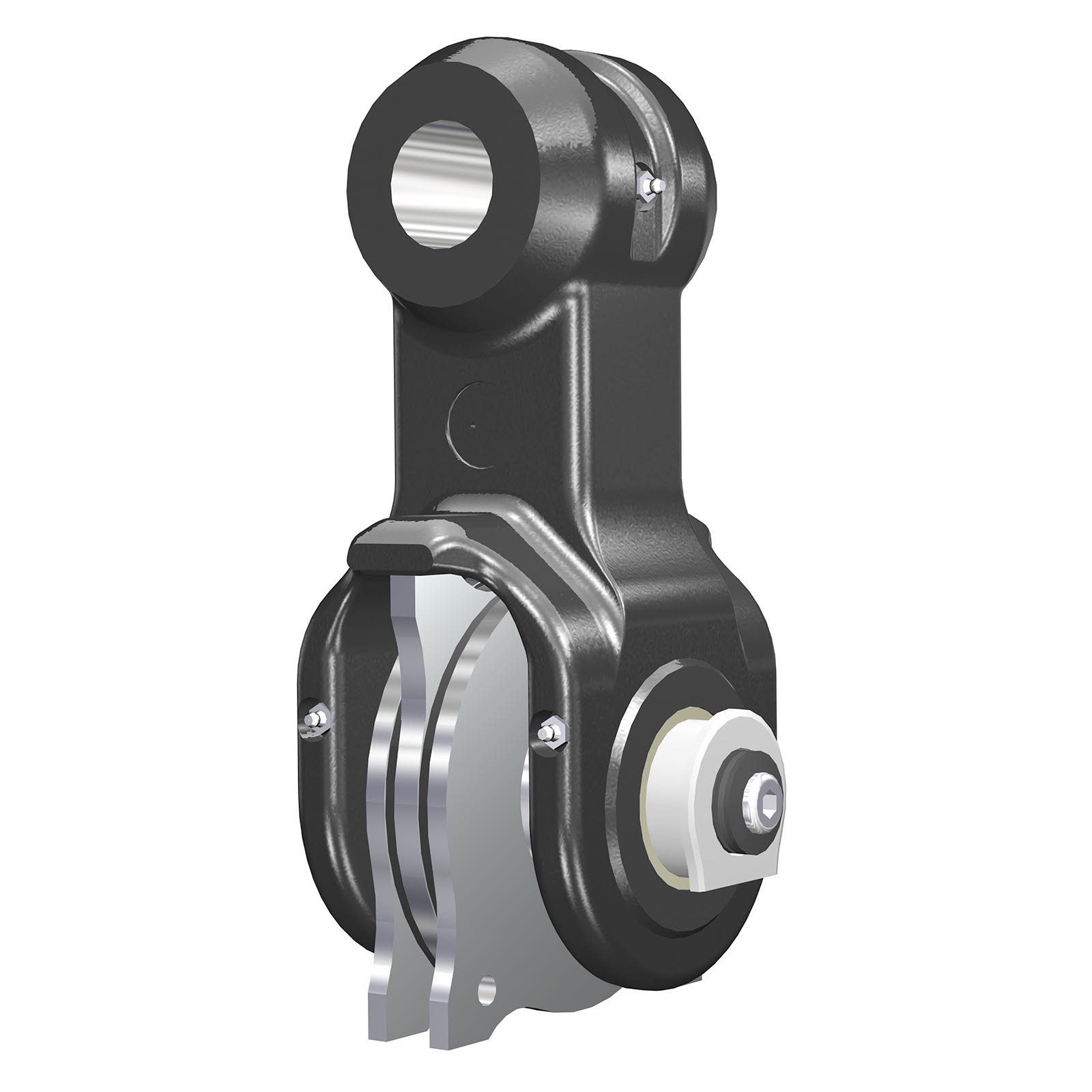

Single swing damper MPB1-125


Technical data

Part No. 5016552
Brake against rotator MPB1
Upper interface 125 mm
Lower interface MPB1 144 mm
31 kg
160 kN

Bushing

Diameter, upper bushing (C) Bronze ManganBronze
Ø45 mm 2 x 1003896 2 x 5006684

The product is supplied with a pin and bushing in the lower position. The product is supplemented with a bushing in the upper position according to the table.

We reserve the right to make product changes. For further technical information relating to integration, please contact rotator@indexator.com

Single swing damper MPB1-125
A MPB1
B MPB
C See table
G 125 mm
H 240 mm
Bushing
Diameter, upper bushing (C) Bronze ManganBronze
Ø45 mm 2 x 1003896 2 x 5006684
