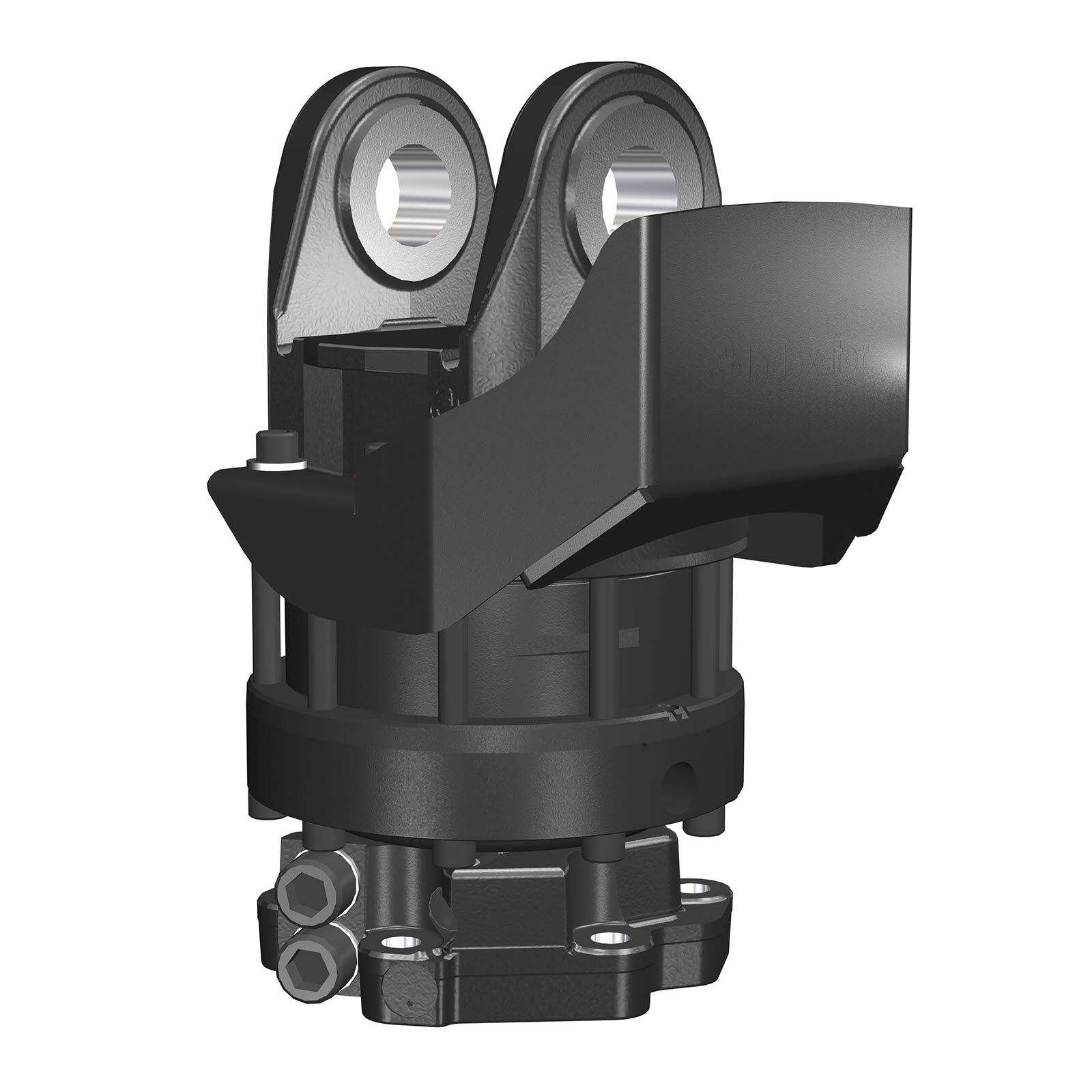

Rotator GV 12S A Y


Technical data

Part No. 5212278
Type of rotator Grapple rotator
58.3 kg
360°
100 kN
50 kN
2200 Nm
25 l/min
25 MPa
30 MPa
30 MPa

Function

Protected Hose Routing

Interface

Upper interface 100 mm
Lower interface Ø 173 mm

Rotator with only axial connections for a grapple function.

Adapter sets are available for alternative connections.

We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com

GV 12S A Y
A 101 mm
B Ø45 mm
C Ø173 mm
D Ø17 mm
F 30 mm
H 333 mm
K 38,5 mm
L Ø229 mm
M 164 mm
N 6 mm
Connections
Upper connection G 1/2
Lower connection G 1/2
