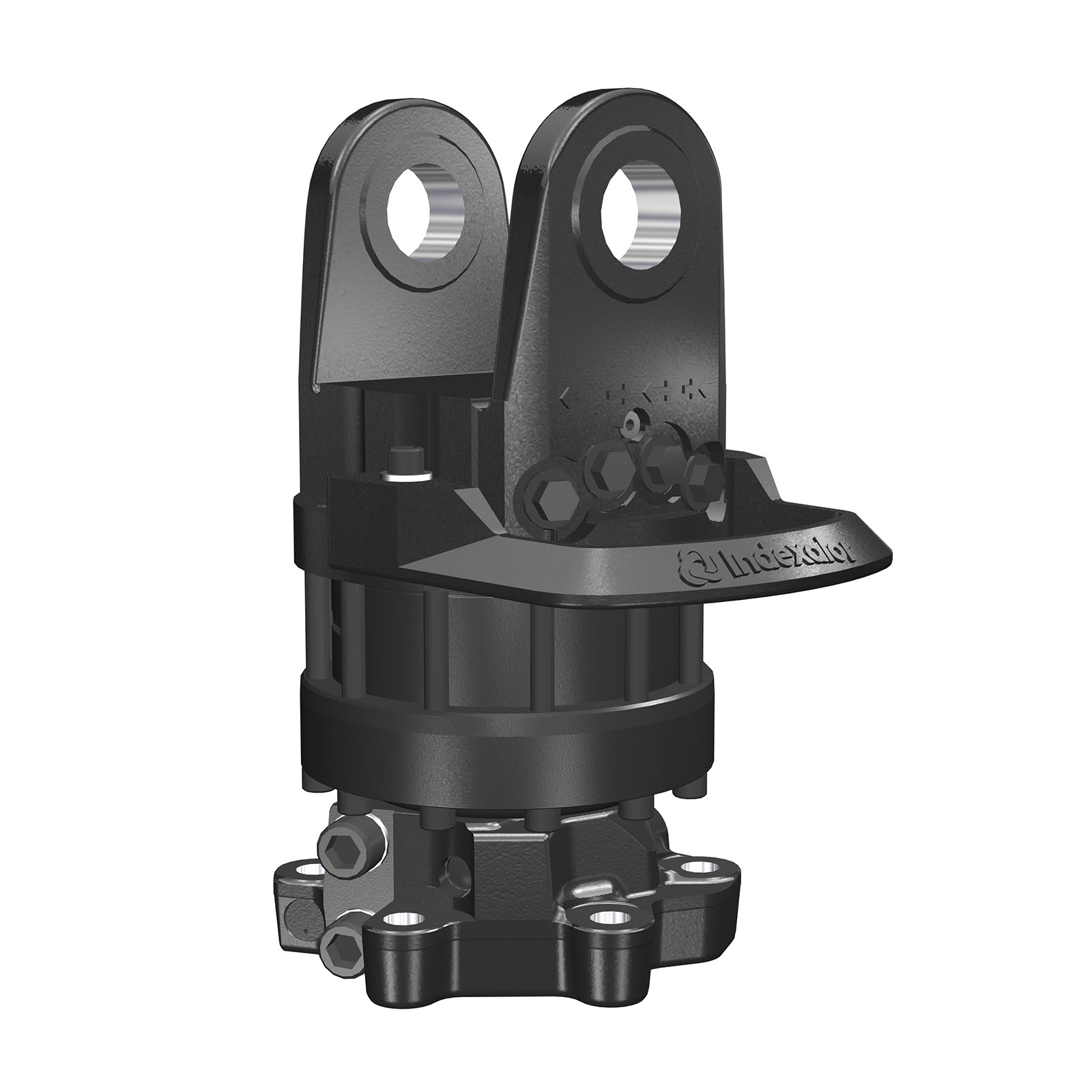

Rotator GV 17US 203
Technical data
| Part No. | 5217181 |
|---|---|
| Type of rotator | Grapple rotator |
| 69.8 kg | |
| 360° | |
| 160 kN | |
| 50 kN | |
| 3300 Nm | |
| 35 l/min | |
| 25 MPa | |
| 30 MPa | |
| 30 MPa |
Interface
| Upper interface | 136,5 mm |
|---|---|
| Lower interface | Ø 203 mm |
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| GV 17US 203 | |
|---|---|
| A | 136,5 mm |
| B | Ø52,2 mm |
| C | Ø203 mm |
| D | Ø21 mm |
| F | 40 mm |
| H | 381 mm |
| K | 40 mm |
| L | Ø248 mm |
| M | 202 mm |
| Connections | ||
|---|---|---|
| Upper connection | 7/8”-14 UNF | |
| Lower connection | G 1/2 | |
