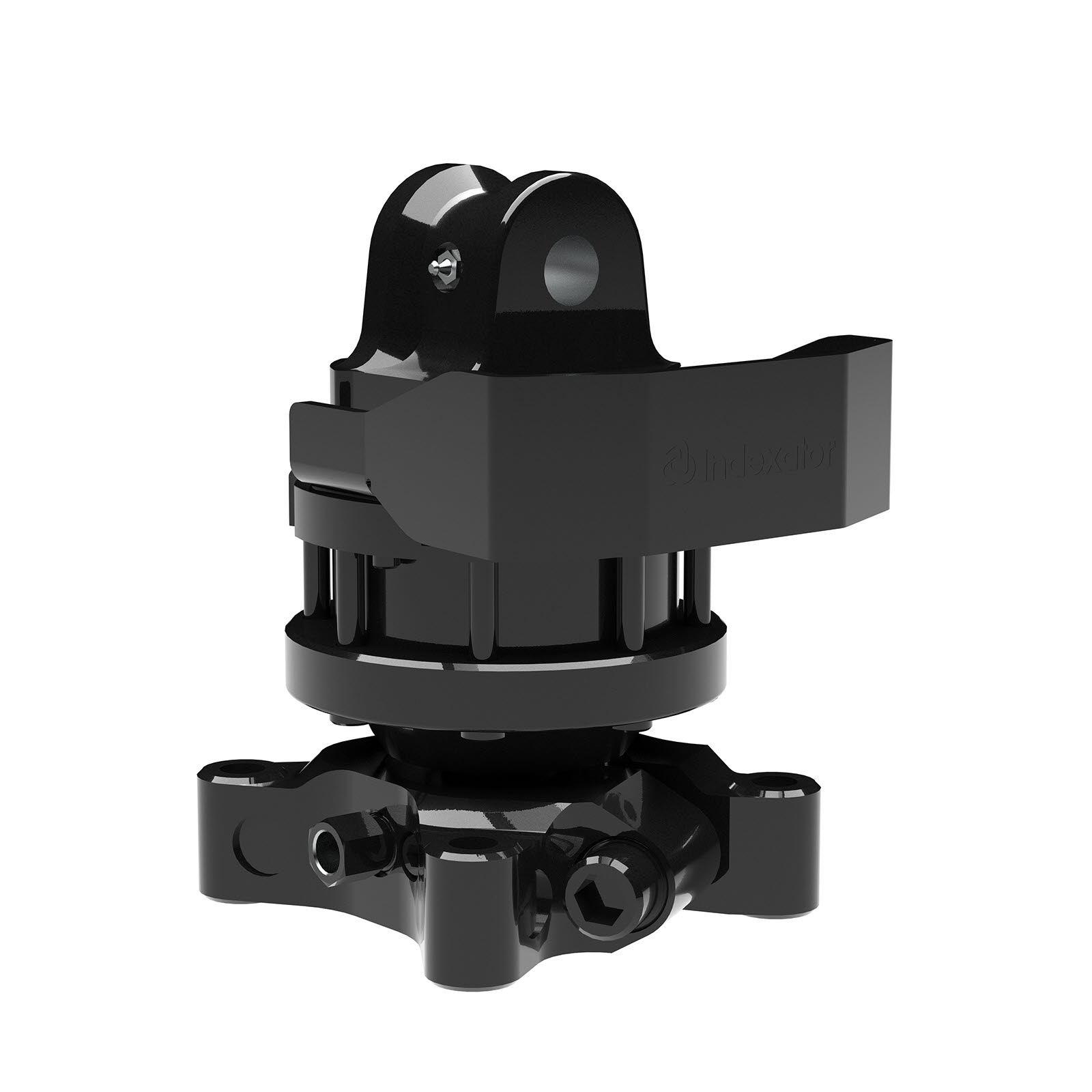

Rotator GV 3 K
Technical data
| Part No. | 5002327 |
|---|---|
| Type of rotator | Grapple rotator |
| 23.8 kg | |
| 360° | |
| 30 kN1 | |
| 12.5 kN | |
| 950 Nm | |
| 10 l/min | |
| 25 MPa | |
| 20 MPa2 | |
| 30 MPa |
Interface
| Upper interface | 75 mm |
|---|---|
| Lower interface | 140 mm x 140 mm |
1 40 kN when mounted to a piece goods crane.
2 25 MPa when mounted to a piece goods crane.
K = 140×140 mm lower hole pattern.
Adapter sets are available for alternative connections.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| GV 3 K | |
|---|---|
| A | 75 mm |
| B | Ø25 mm |
| C | 140x140 |
| D | Ø17 mm |
| F | 46 mm |
| H | 237 mm |
| K | 28 mm |
| L | Ø232 mm |
| M | 130 mm |
| Connections | ||
|---|---|---|
| Upper connection | G 3/8 | |
| Lower connection | G 1/4 | |
