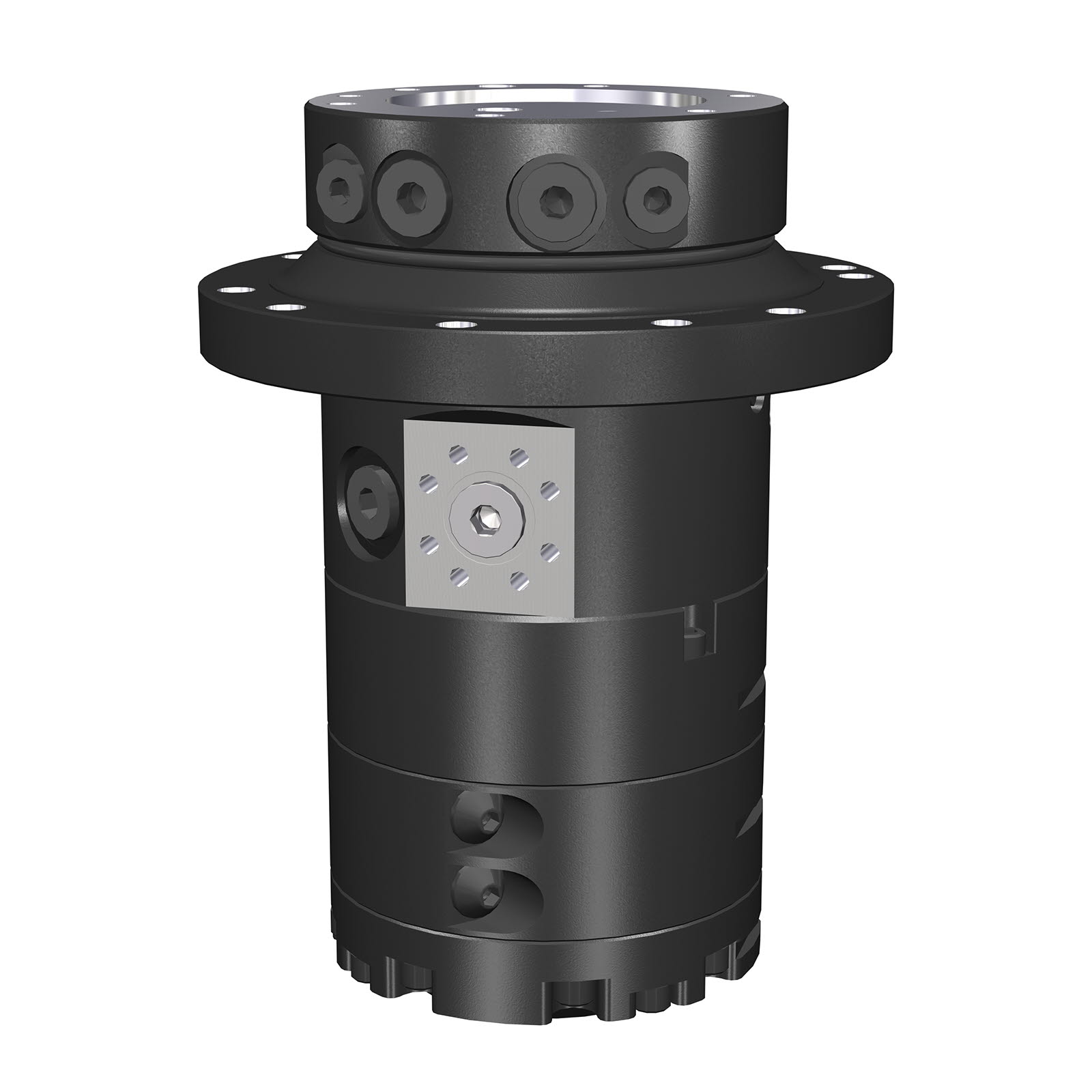

Rotator IR 10HT M16
Technical data
| Part No. | 8000305 |
|---|---|
| Type of rotator | Grapple rotator |
| 91 kg | |
| 360° | |
| ±250 kN | |
| ±70 kN | |
| 2900 Nm | |
| 25 l/min | |
| 21 MPa | |
| 35 MPa | |
| 35 MPa |
Interface
| Upper interface | 210 mm |
|---|---|
| Lower interface | Ø 205 mm |
Pressure limiting valves fitted in the motor.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| IR 10HT M16 | |
|---|---|
| A | Ø210 mm |
| B | M16 depth 40 |
| E | Ø180 mm |
| F | Ø305 mm |
| G | 30 mm |
| H | Ø17 mm |
| I | Ø275 mm |
| J | 60° |
| K | 72° |
| L | 402 mm |
| M | 294 mm |
| O | Ø200 mm |
| P | Ø20 mm |
| Q | 60° |
| S | Ø205 mm |
| Connections | ||
|---|---|---|
| Upper | G G0 | G 3/4 |
| R | G 1/2 | |
| Lower | G | SAE 3000 DN 25 / G 3/4 |
| G0 | SAE 3000 DN 25 / G 3/4 | |
| G0 | G 3/4 | |
