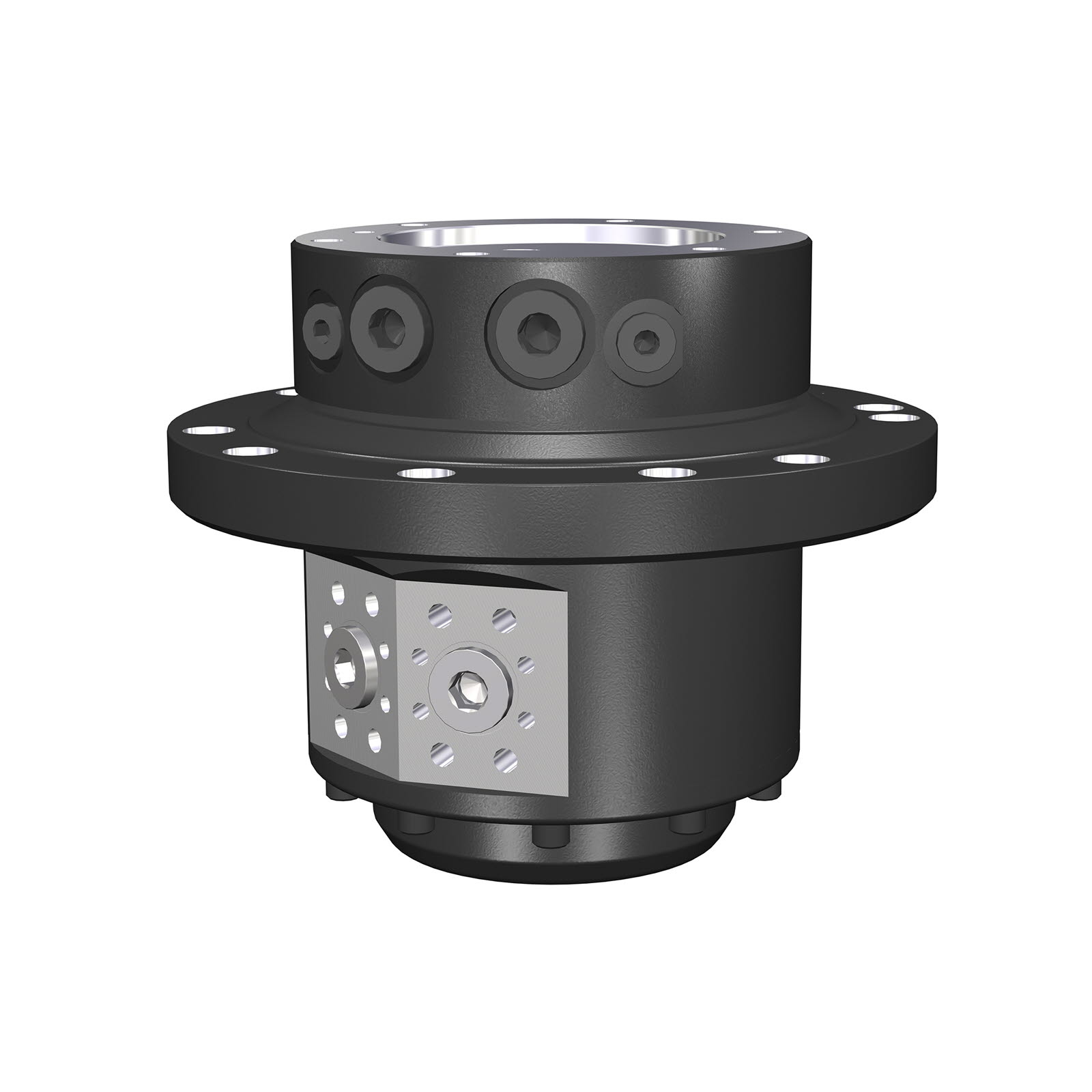

Rotator IR 20M M20
Technical data
| Part No. | 8000508 |
|---|---|
| Type of rotator | Grapple rotator |
| 109 kg | |
| 360° | |
| ±450 kN | |
| ±150 kN | |
| 35 MPa | |
| 35 MPa |
Interface
| Upper interface | 255 mm |
|---|---|
| Lower interface | Ø 260 mm |
Mechanical rotator without motor.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| IR 20M M20 | |
|---|---|
| A | Ø255 mm |
| B | M20 depth 50 |
| E | Ø220 mm |
| F | Ø380 mm |
| G | 36 mm |
| H | Ø26 mm |
| I | Ø340 mm |
| J | 60° |
| K | 72° |
| L | 307 mm |
| M | 180 mm |
| O | Ø250 mm |
| Q | 60° |
| S | Ø260 mm |
| Connections | ||
|---|---|---|
| Upper | G G0 | G 1 |
| R | G 1/2 | |
| Lower | G | SAE 3000 DN 25 / SAE 6000 DN 32 / G 1 |
| G0 | SAE 3000 DN 25 / SAE 6000 DN 32 / G 1 | |
| G0 | SAE 3000 DN 25 / SAE 6000 DN 32 / G 1 | |
