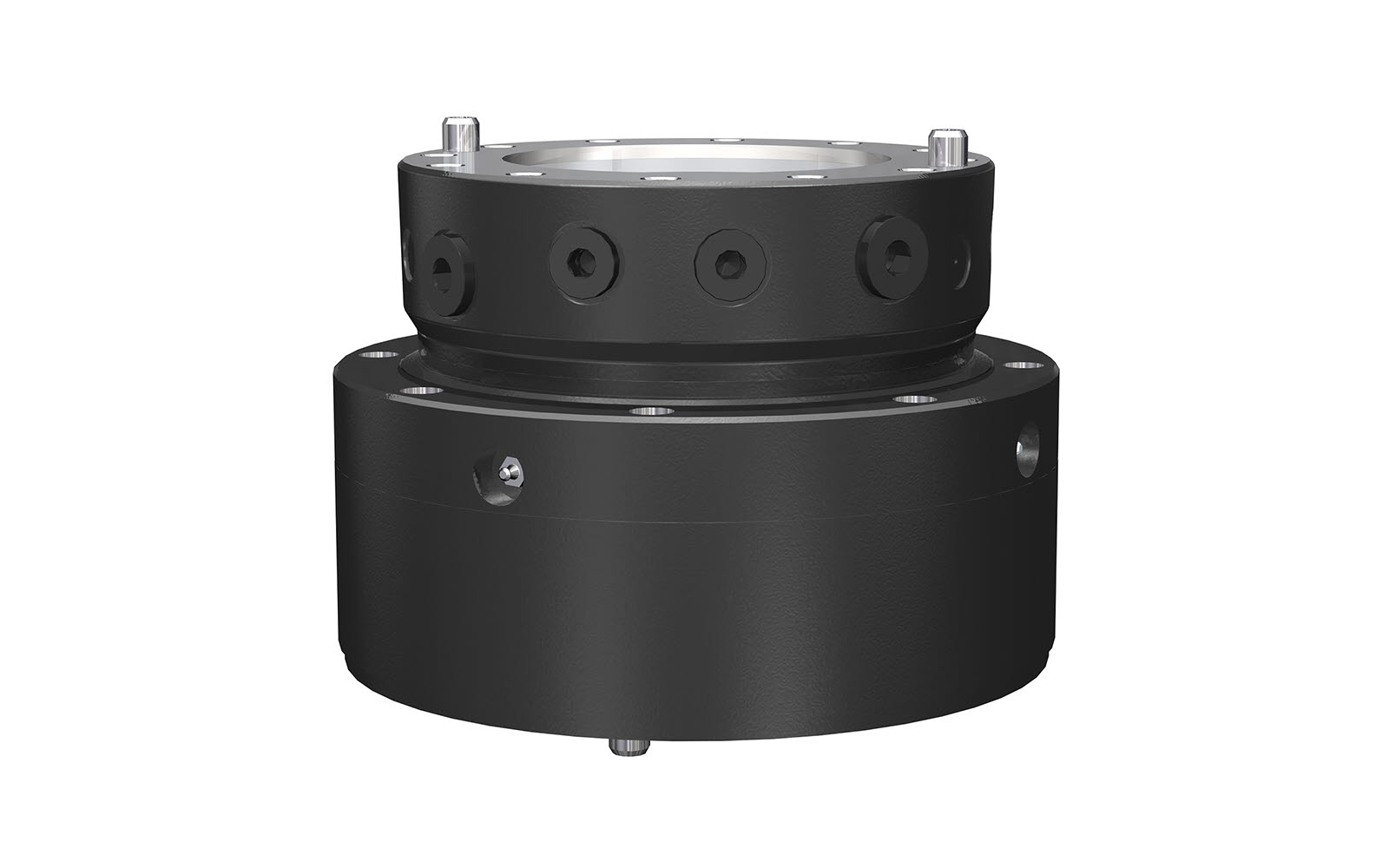

Rotator XR 300 T LS

Technical data

Part No. 8300006
Type of rotator Grapple rotator
77 kg
±300 kN1
±90 kN
±70 kN
±17 kNm2
3000 Nm
28 l/min
25 MPa
35 MPa
35 MPa


Load Sense


Upper interface Ø 216 mm
Lower interface Ø 270 mm

1 Max axial load static indicate theoretical max load for hanging applications without accelerations.

2 The torque load may not be combined with axial load.

A rotator with the shortening LS is not equipped with restrictors (unlike our standard rotators). This means that the oil flow from the base machine has to be adapted.

Pressure limiting valves fitted in the motor.

Can be supplemented with hose guard.

Oil distributor ordered separately.

We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact

XR 300 T LS
A Ø244,7 mm
B M16
C 33 mm
D Ø160 mm
E Ø216 mm
F Ø300 mm
G 122,3 mm
H Ø17 mm
I Ø270 mm
J 45°
K Ø295 mm
L 206,3 mm
M 30°
O Ø16 mm
P 15°
Q M10
R 90°
S Ø96 mm
T 19 mm
Y Ø16 mm
Z Ø230 mm
Upper G G0 G 3/4
R G 1/2
