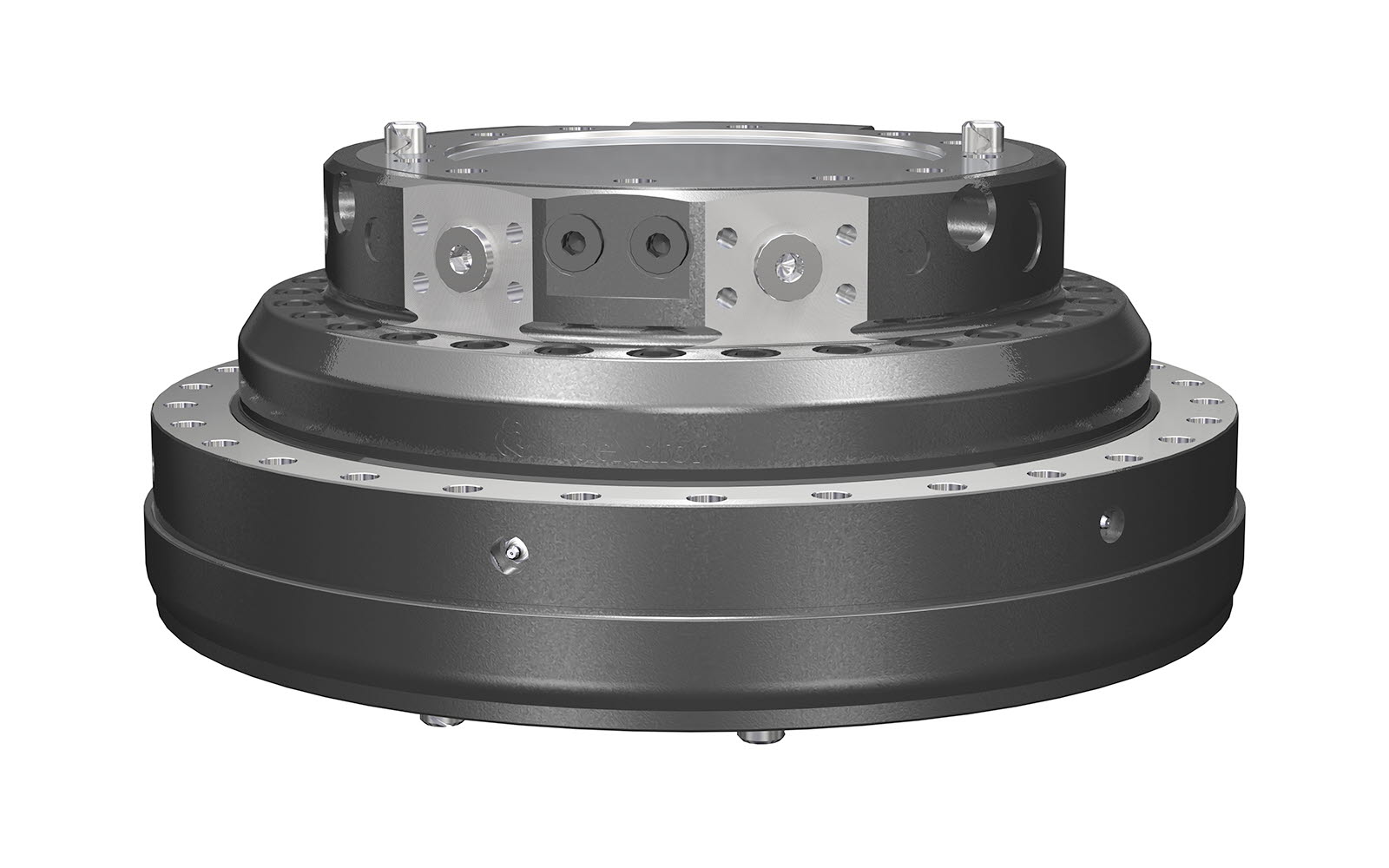

Rotator XR 600 C


Technical data

Part No. 8600001
Type of rotator Grapple rotator
264 kg
360°
±850 kN1
±300 kN
±200 kN
±115 kNm2
7000 Nm
40 l/min
25 MPa
35 MPa
35 MPa
40 MPa

Function

Central lubrication 40 MPa

Interface

Upper interface Ø 300 mm
Lower interface Ø 535 mm

1 Max axial load static indicate theoretical max load for hanging applications without accelerations.

2 The torque load may not be combined with axial load.

Pressure limiting valves fitted in the motor.

Can be supplemented with hose guard.

Oil distributor ordered separately.

We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com

XR 600 C
A Ø384 mm
AB 150 mm
AC 460 mm
B M24
C 53 mm
D Ø260 mm
E Ø300 mm
F Ø575 mm
G 103 mm
H Ø17,5 mm
I Ø535 mm
J 12°
K Ø565 mm
L 231 mm
M 30°
N 23°
O Ø22 mm
P 12°
Q M12
R 72°
S Ø140 mm
T 33 mm
U 37°
Y Ø22 mm
Connections
Upper Central lubrication M10 x 1,0
G G0 SAE 6000 DN 25
R G 1/2

Manifold blocks
