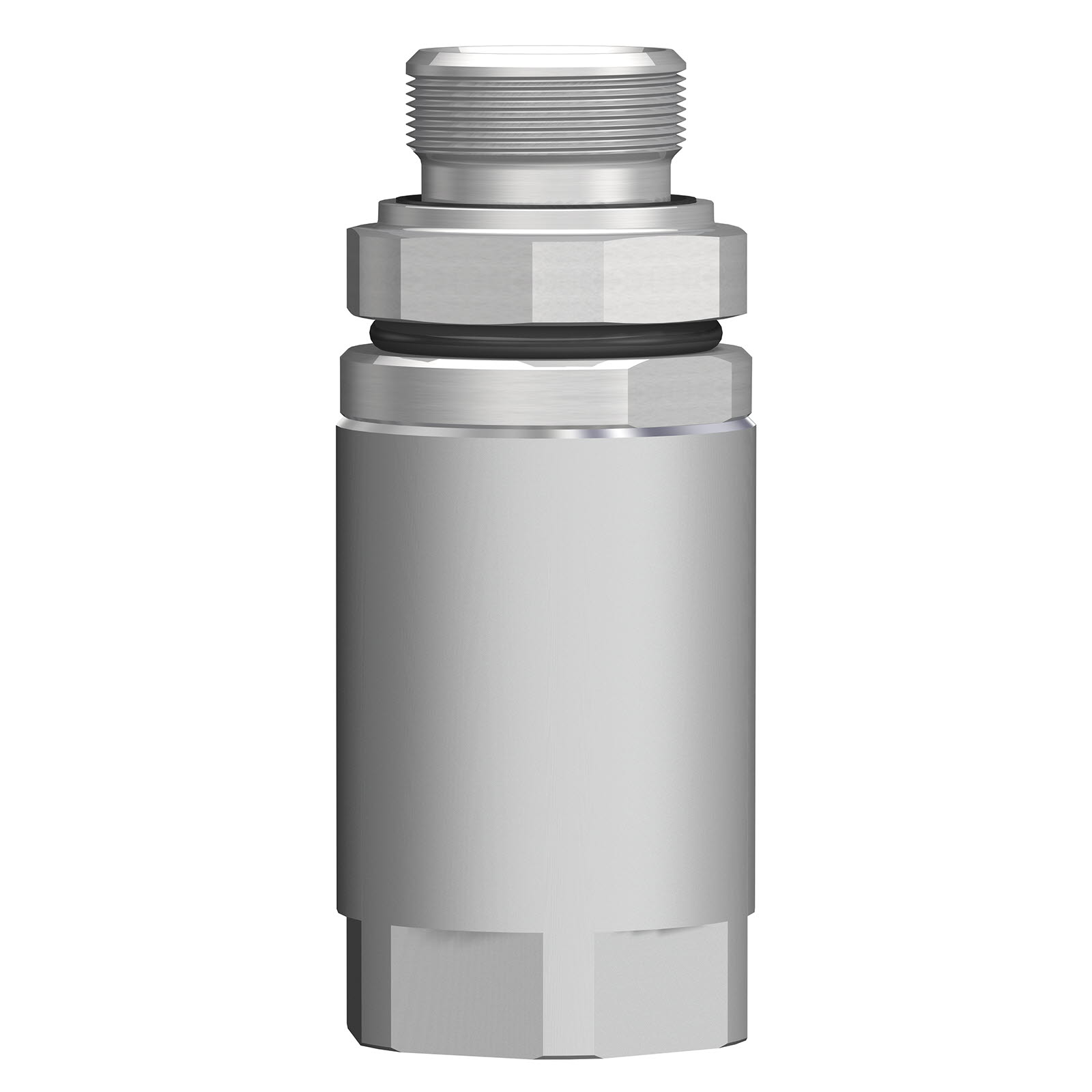

IDL G1 - G1 ED IxA


Technical data

Part No. 5001674
Type Female x Male
Type of connection G ED-G
Max work pressure 35 MPa
Seal kit 5001634
1.11 kg

G = BSP, 60° cone Temperature range (standard) = -30° C - +100° C ED, soft-seated Pressures as listed should be used as guide only and not as a specification.

We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com

IDL G1 - G1 ED IxA
B1 G 1
B2 G 1
L 118 mm
ØD 20 mm
NV 46 mm
ØA 50 mm
