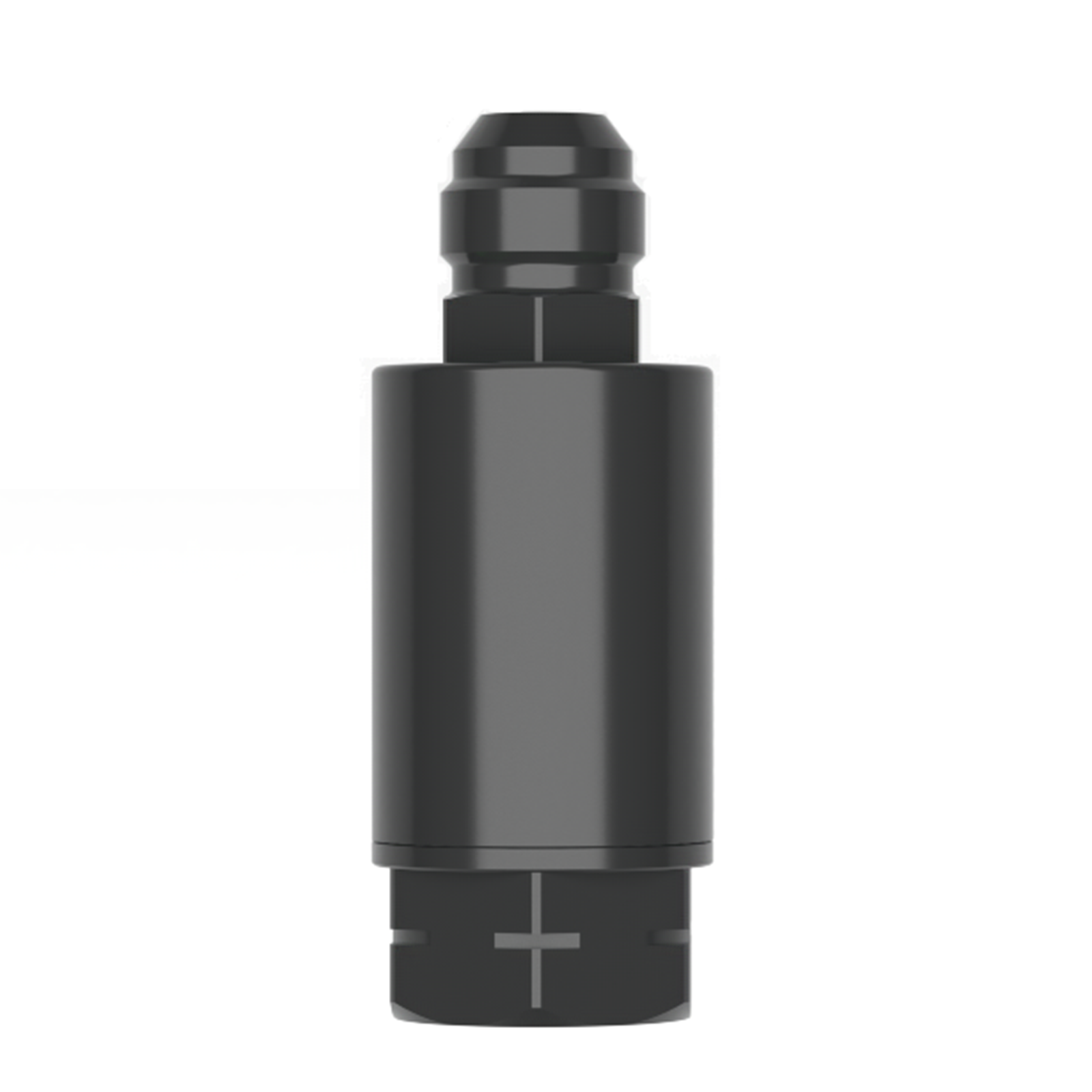

K100 G1/2x7/8-14 UNF S
Technical data
| Part No. | 9010014 |
|---|---|
| Type | Female x Male |
| Type of connection | G-JIC |
| Max work pressure | 45 MPa |
| JIC size | 10 |
| Seal kit | 6002515 |
| 0.49 kg |
JIC cone, external, 37° JIC internal, SAE O-ring Temperature range (standard) = -30° C - +100° C Pressures as listed should be used as guide only and not as a specification.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
| K100 G1/2x7/8-14 UNF S | |
|---|---|
| B1 | G 1/2 |
| B2 | 7/8” UNF S |
| L | 98 mm |
| ØD | 12 mm |
| NV1 | 32 mm |
| NV2 | 21 mm |
| ØA | 37 mm |
