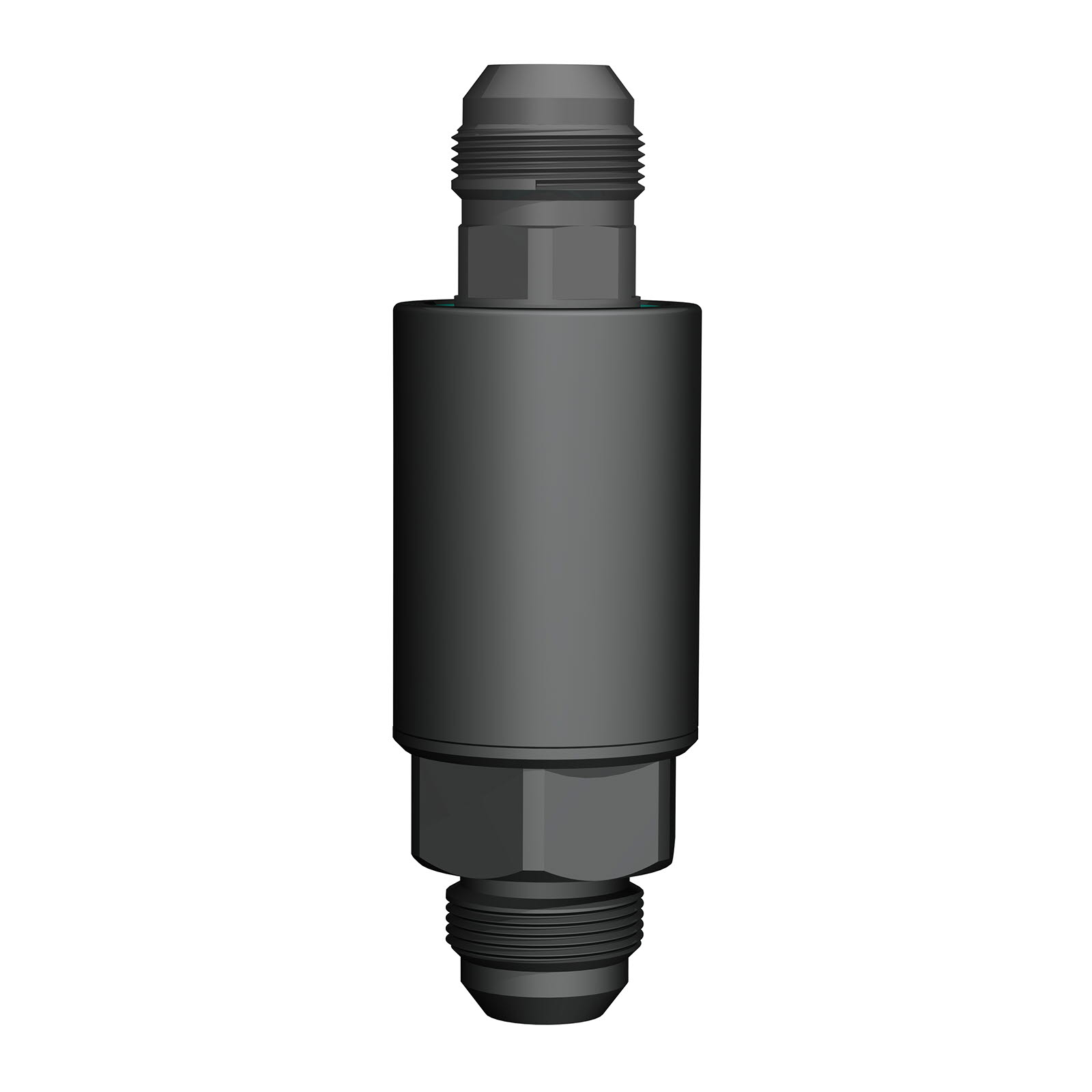

K100 1 1/16”-12 UN - 1 1/16”-12 UN

Technical data

Part No. 9010061
Type Male x Male
Type of connection JIC
Max work pressure 45 MPa
JIC size 12
Seal kit 6002516
0.8 kg

JIC cone, external, 37° JIC internal, SAE O-ring Temperature range (standard) = -30° C - +100° C Pressures as listed should be used as guide only and not as a specification.

We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com

K100 1 1/16”-12 UN - 1 1/16”-12 UN
B1 1 1/16”-12 UN
B2 1 1/16”-12 UN
L 132 mm
ØD 15.5 mm
NV1 36 mm
NV2 24 mm
ØA 43 mm
