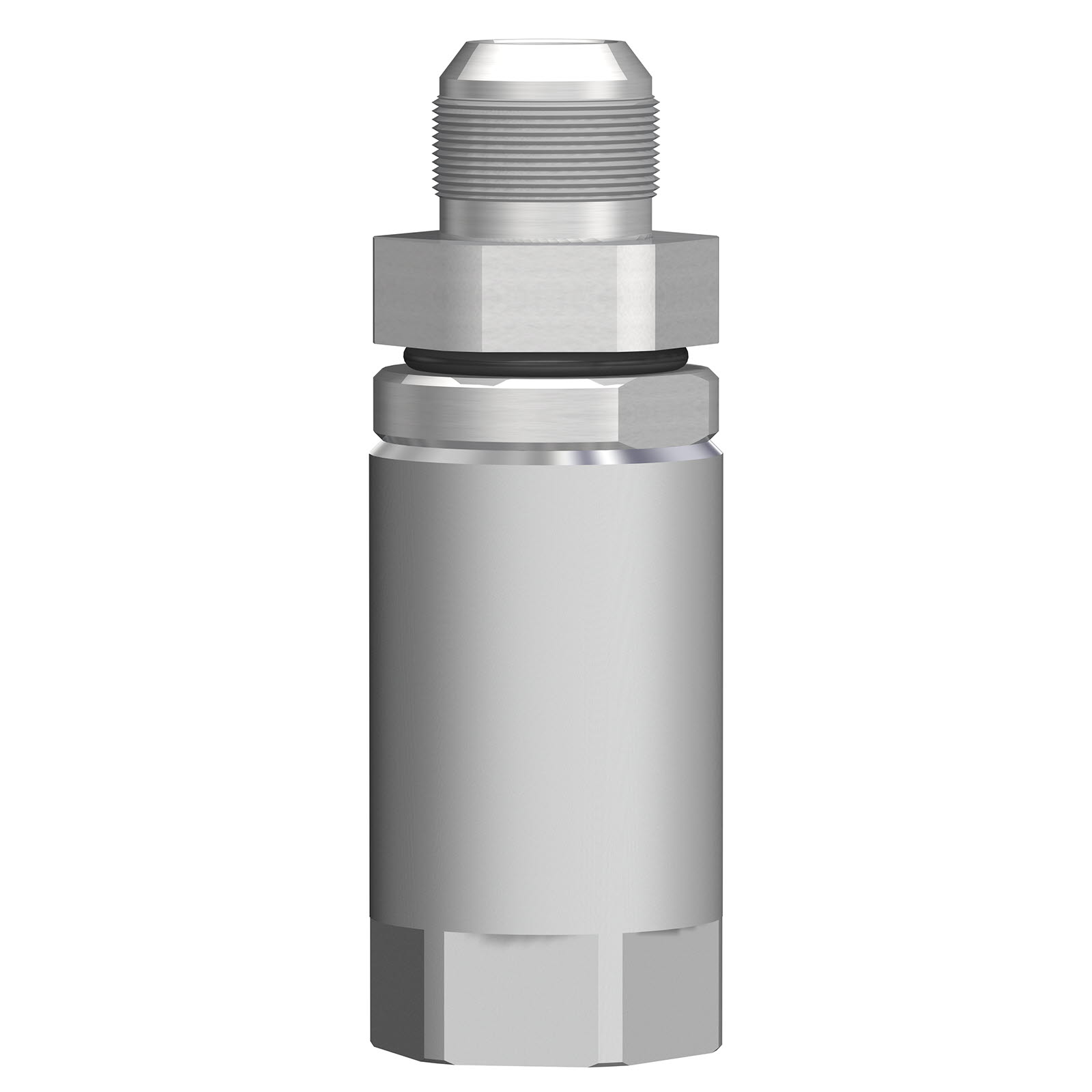

IDL 1 5/16”-12 UN - 1 5/16”-12 UN

Technical data

Part No. 5001299
Type Female x Male
Type of connection JIC
Max work pressure 36.5 MPa
JIC size 16
Seal kit 5001634
1.1 kg

JIC cone, external, 37° JIC internal, SAE O-ring Temperature range (standard) = -30° C - +100° C Pressures as listed should be used as guide only and not as a specification.

We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact

IDL 1 5/16”-12 UN - 1 5/16”-12 UN
B1 1 5/16”-12 UN
B2 1 5/16”-12 UN
L 92 mm
ØD 20 mm
NV 32 mm
ØA 35 mm
