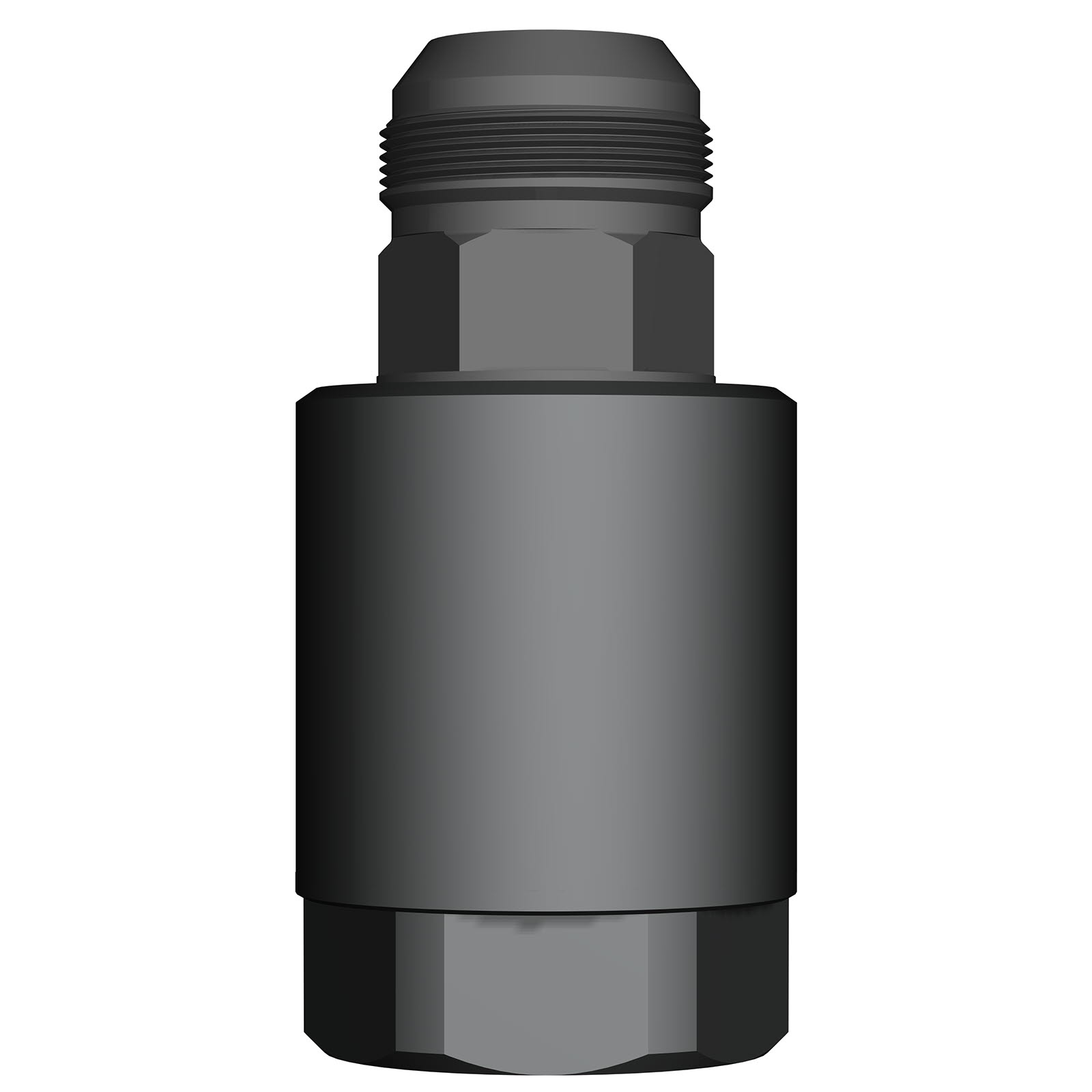

K100 1 5/8”-12 UN - 1 5/8”-12 UN


Technical data

Part No. 9010072
Type Female x Male
Type of connection JIC
Max work pressure 45 MPa
JIC size 20
Seal kit 6003020
1.54 kg

JIC cone, external, 37° JIC internal, SAE O-ring Temperature range (standard) = -30° C - +100° C Pressures as listed should be used as guide only and not as a specification.

We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com

K100 1 5/8”-12 UN - 1 5/8”-12 UN
B1 1 5/8”-12 UN
B2 1 5/8”-12 UN
L 124.5 mm
ØD 25 mm
NV1 55 mm
NV2 36 mm
ØA 62 mm
