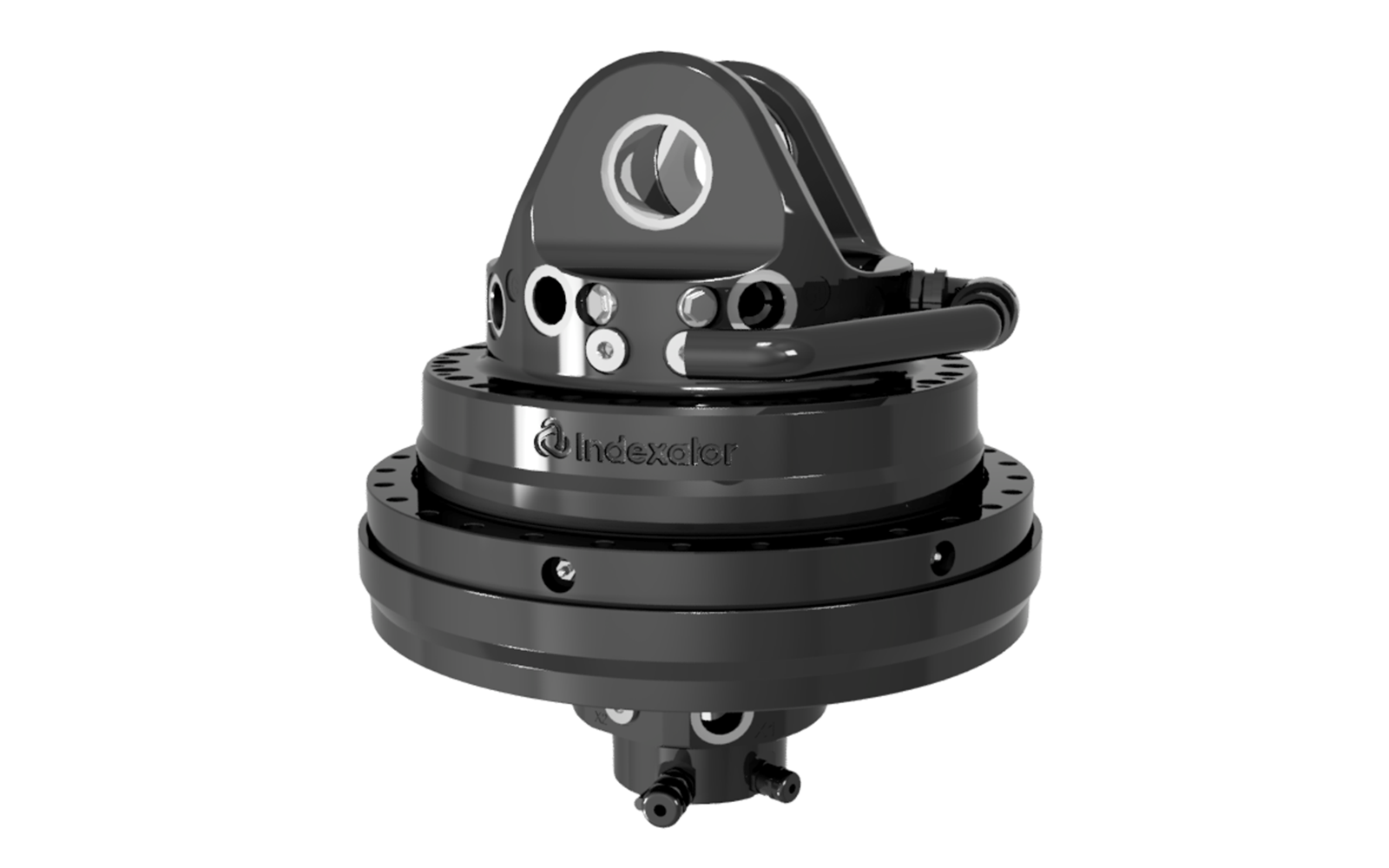

Rotator XR 400 E HT P X2 C
Technical data
Part No. | 8400033 |
---|---|
Type of rotator | Grapple rotator |
250 kg | |
360° | |
±550 kN1 | |
±200 kN | |
±140 kN | |
±47 kNm2 | |
7000 Nm | |
300 V | |
90 A | |
40 l/min | |
25 MPa | |
40 MPa | |
40 MPa | |
40 MPa | |
40 MPa | |
40 MPa |
Function
Central lubrication | 40 MPa |
Slip ring |
Interface
Upper interface | 151,3 mm |
---|---|
Lower interface | Ø 450 mm |
1 Max axial load static indicate theoretical max load for hanging applications without accelerations.
2 The moment load may not be combined with axial load.
Pressure limiting valves fitted in the motor.
We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com
XR 400 E HT P X2 C | |
---|---|
A | 151,3 mm |
AB | 174 mm |
AC | 390 mm |
AD | Ø190 mm |
B | Ø60 mm |
C | 65 mm |
E | 313,3 mm |
F | Ø488 mm |
G | 99 mm |
H | Ø14 mm |
I | Ø450 mm |
J | 12° |
K | Ø474 mm |
L | 388,3 mm |
U | 452 mm |
V | 368 mm |
W | Ø225 mm |
Y | Ø22 mm |
Connections | ||
---|---|---|
Upper | X1 | G 1 |
X2 | G 1/2 | |
Central lubrication | G 1/4 | |
G G0 | G 1 | |
R | G 1/2 | |
Lower | X1 | G 1 |
X2 | G 1/2 | |
Central lubrication | G 1/4 | |
G | G 1 | |
G0 | G 1 |
