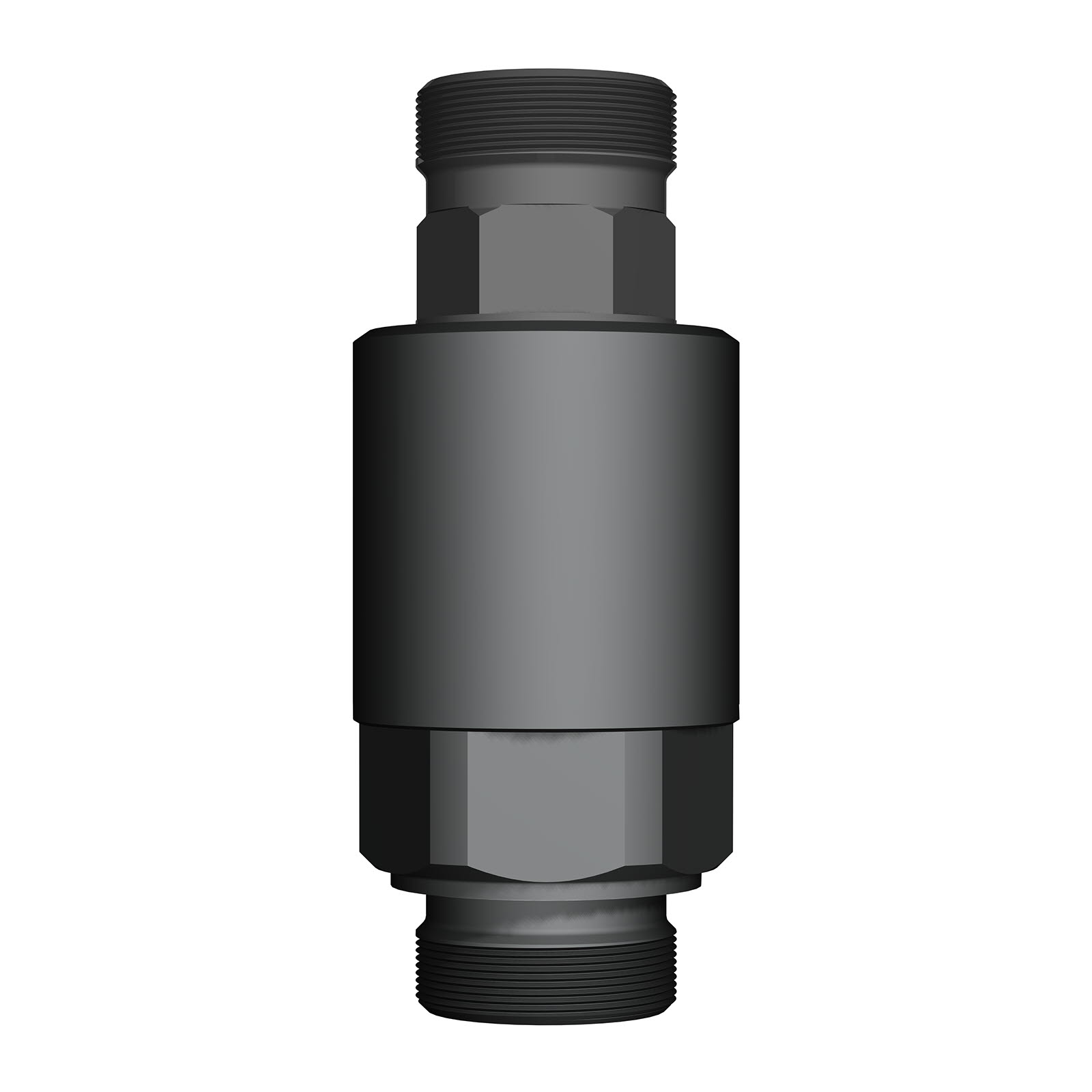

K100 G1 1/4 ED x G1 1/4

Technical data

Part No. 9010077
Type Male x Male
Type of connection G ED-G
Max work pressure 40 MPa
Seal kit 6003020
1.87 kg

G = BSP, 60° cone Temperature range (standard) = -30° C - +100° C ED, soft-seated Pressures as listed should be used as guide only and not as a specification.

We reserve the right to make product changes. For further technical information relating to integration and hydraulic connections, please contact rotator@indexator.com

K100 G1 1/4 ED x G1 1/4
B1 G 1 1/4 ED
B2 G 1 1/4
L 148 mm
ØD 25 mm
NV1 55 mm
NV2 36 mm
ØA 62 mm
